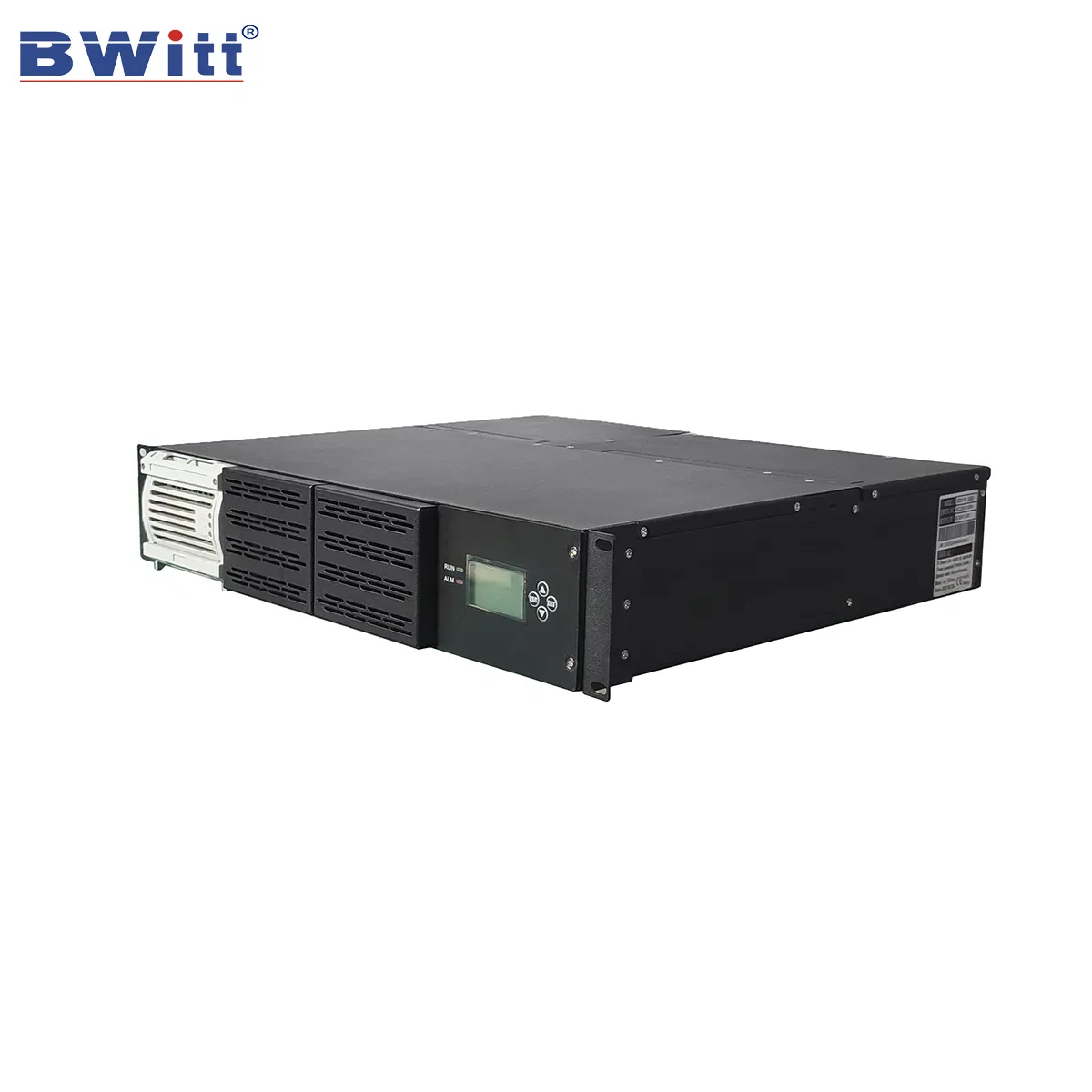

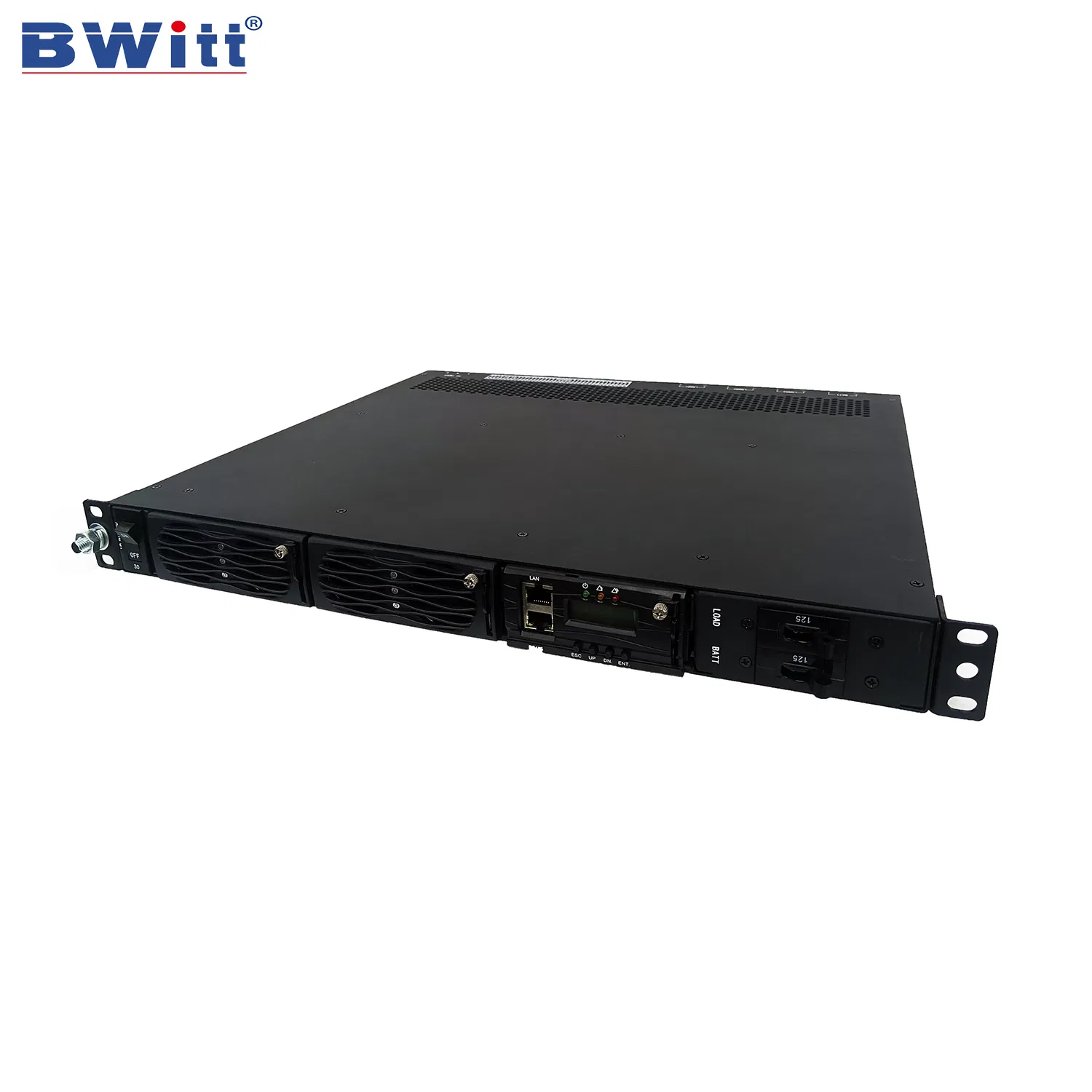

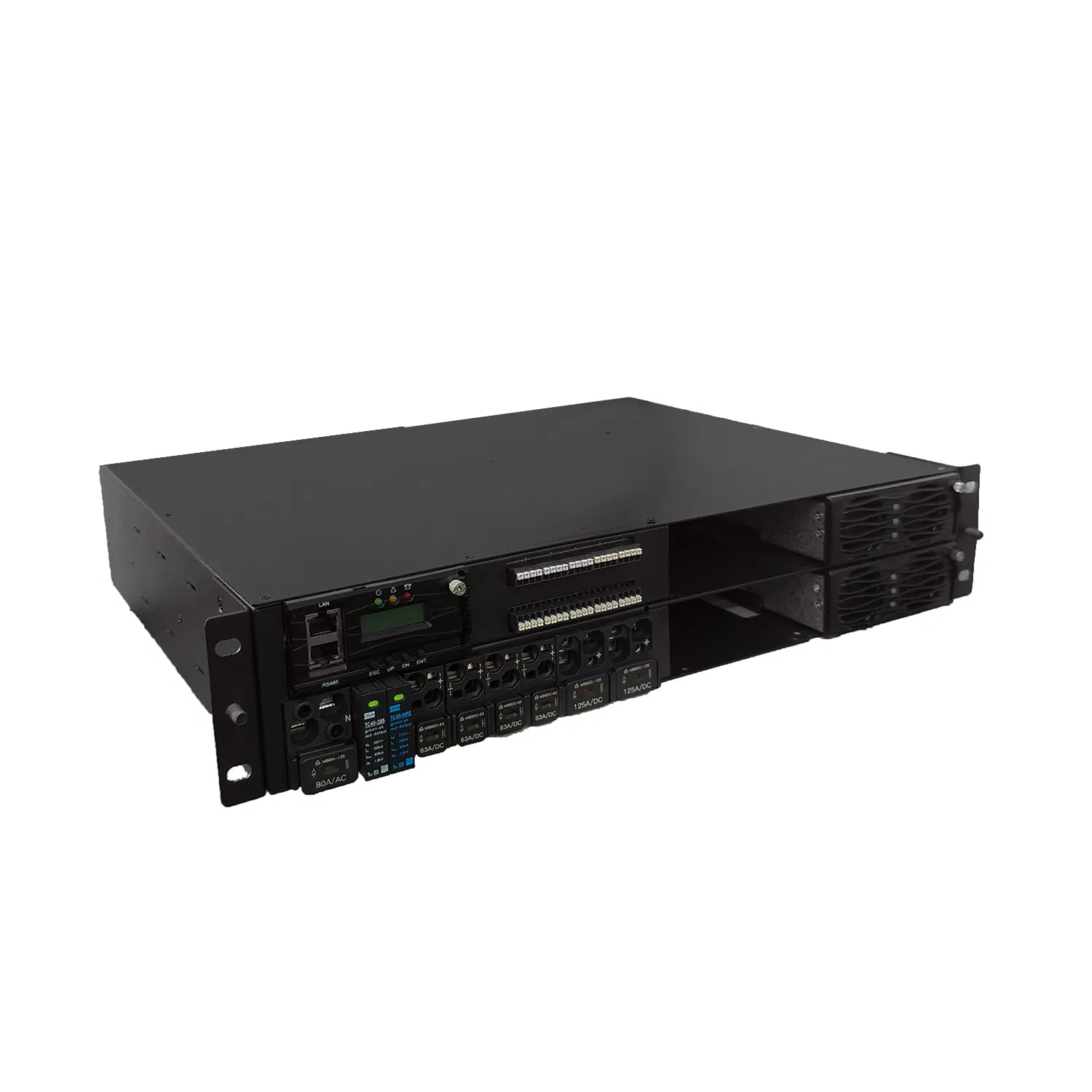

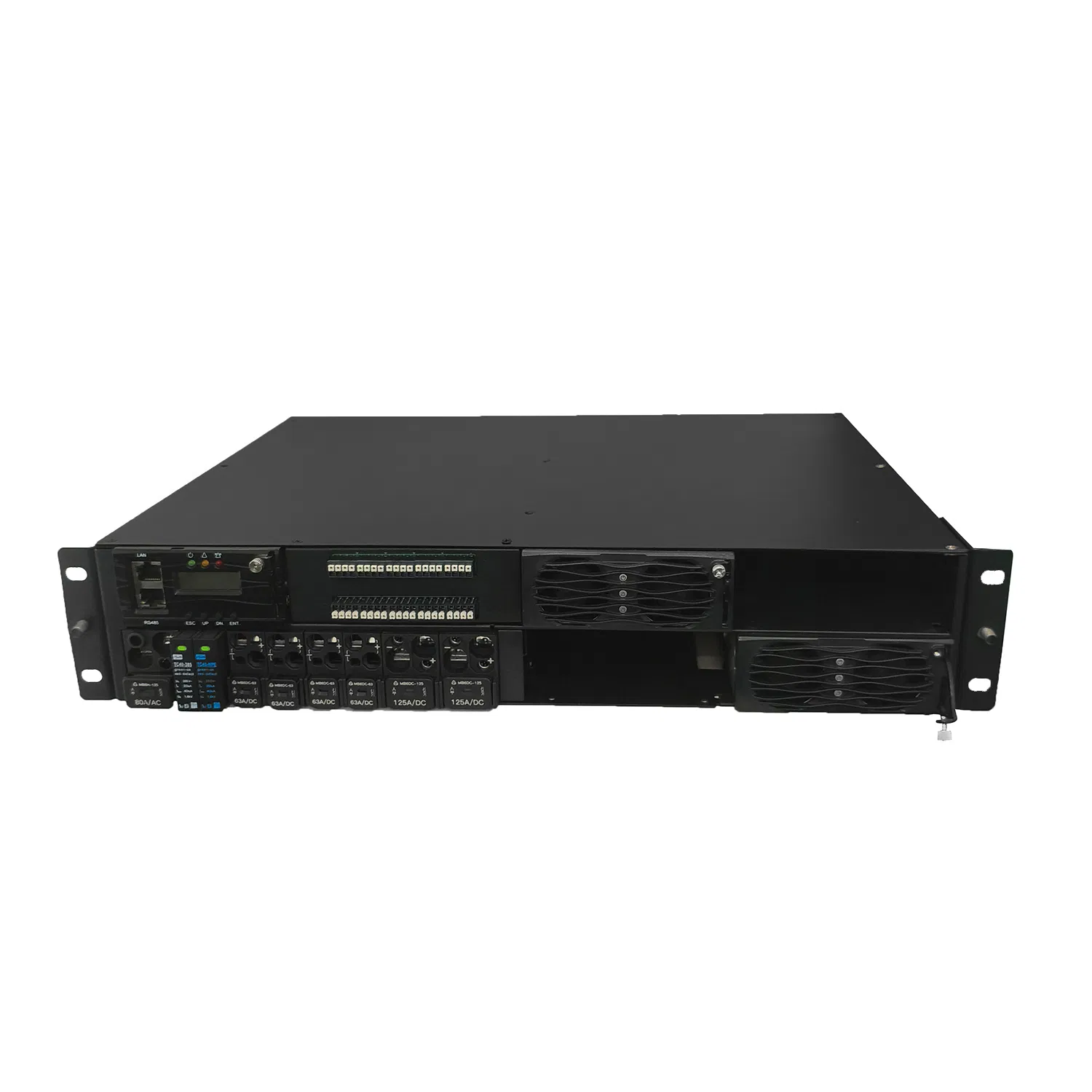

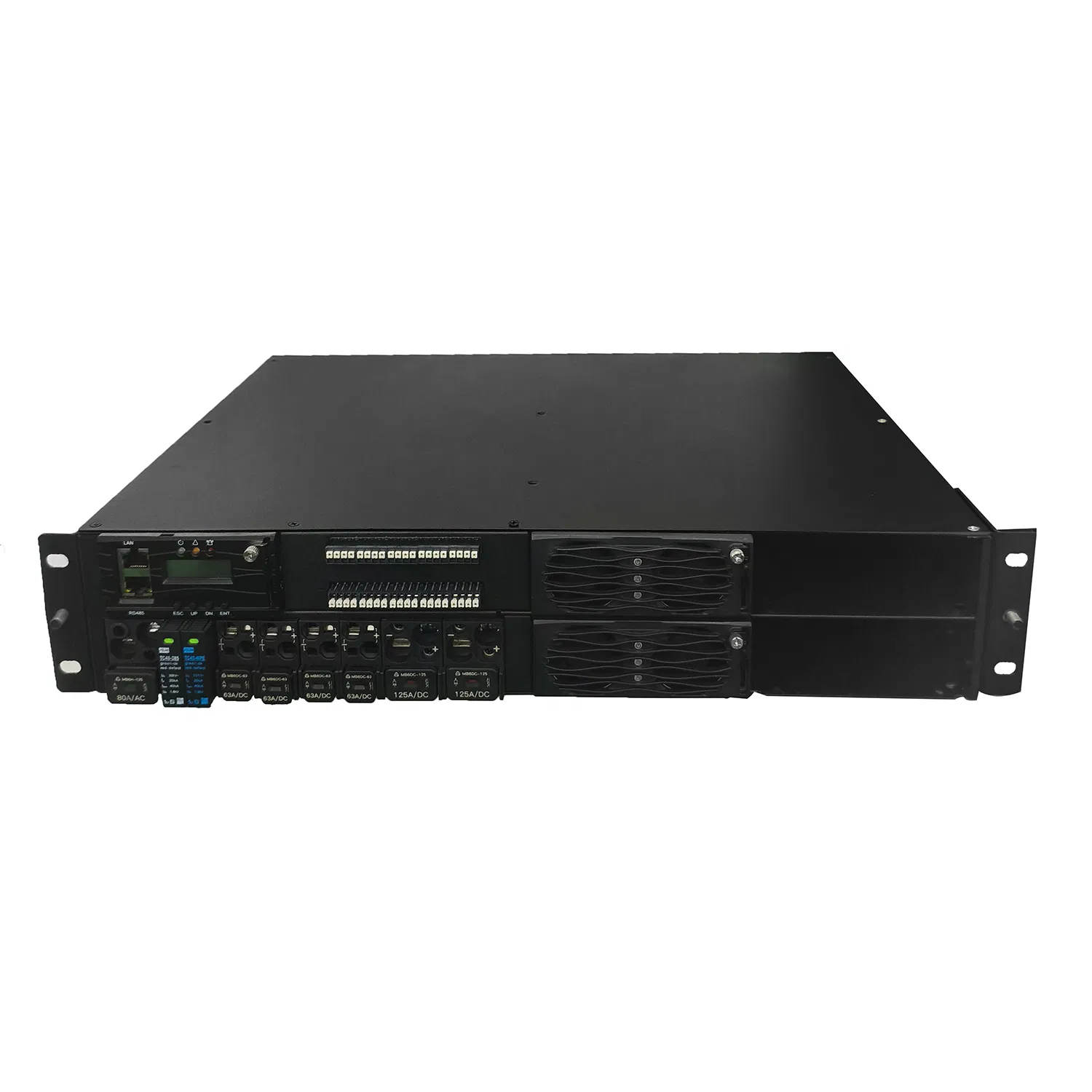

2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System

1 / 5

2u 24VDC Embedded Power Supply Power Supply 60A Modular Switch 19 Rack Mount 1.8kw Rectifier System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

⚡ Overview - Basic Information

Model NO.

BVT220/24-60AS

Output Power

1800W

Input Voltage

220V

Modulation

PWM

Certification

CE, ISO

HS Code

8504401990

📦 Product Features & Description

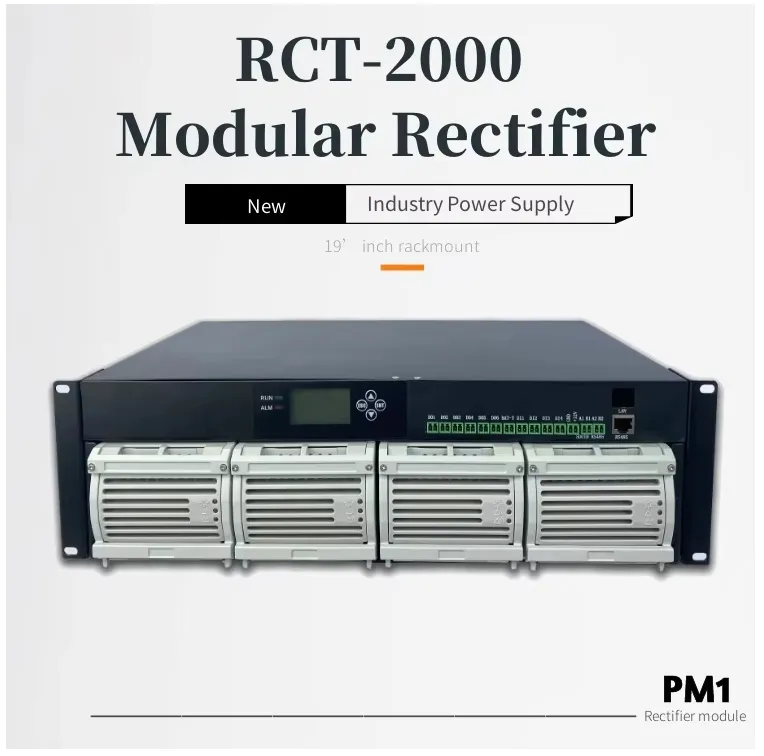

RCT2000 Series Rectifier System (24Vdc)

Widely operating range of AC input voltage: 90~290Vac
Compact 19' inch rackmount shelf (2RU height)
Real-time detection of operating status with sound-light alarm
Perfect battery management with accessory temperature detector
60 amp output per module, 180 amp system capacity max for 2U

Embedded DC Power Systems are widely deployed in Telecom and Industrial environments. The system consists of power distribution units, rectifier modules, and monitoring modules with customizable configurations.

Parameter	Specification	Parameter	Specification
Efficiency	93.2%	Voltage Regulation	≤±1%
Power Capacity	1800W	Current Sharing	≤±5%
Output Current	66A (60A nom)	Ripple Voltage	≤200mV (0-20MHz)
Output Voltage	21-29VDC	Frequency	45-65Hz
Dimensions	482 x 380 x 88 mm	Operating Temp	-40 to +55°C

🏭 Manufacturing & Quality

Our manufacturer specializes in production of rack inverters, STS, and switching power supplies. The factory covers 1000 square meters with a production capacity of 1000 units per month across advanced production lines.

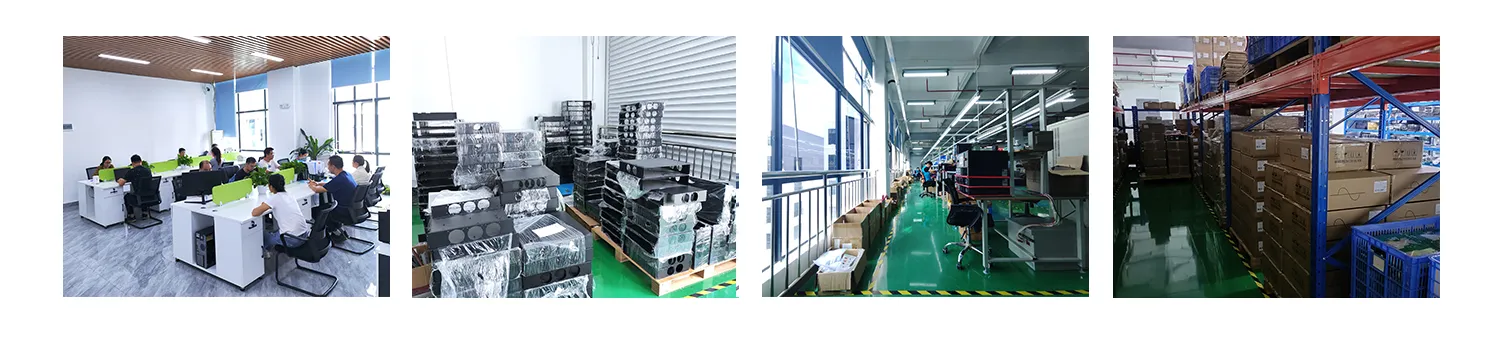

A complete quality control system is established covering material control, SMT, assembly, aging tests, and final inspection. Products meet international standards and hold relevant high-tech and quality certifications.

📜 Certifications & Service

Frequently Asked Questions

Q: Can this system be used for battery charging?

A: Yes, this rectifier system is highly suitable for battery charging applications, featuring N+1 power supply redundancy and integrated battery management.

Q: Does the product support remote monitoring?

A: Yes, it supports SNMP (Optional) and comes with standard RS485 communication interfaces for real-time monitoring and control via software.

Q: What are the protection functions included?

A: The system includes input under-voltage, anti-DC reverse connection, buffer protection, over-voltage, overload, short-circuit, and over-temperature protection.

Q: Can the power supply operate in high-temperature environments?

A: It supports stable operation between -20℃ and 60℃. For extended product life in extreme heat, air conditioning cooling is recommended.

Q: What is the noise level of the high-frequency inverter?

A: The noise level is very low, maintained at ≤55dB during operation.

Q: Can I switch between AC and DC priority modes?

A: Yes, the system supports both AC main and DC main power supply modes, which can be selected via the LCD panel or communication software.
