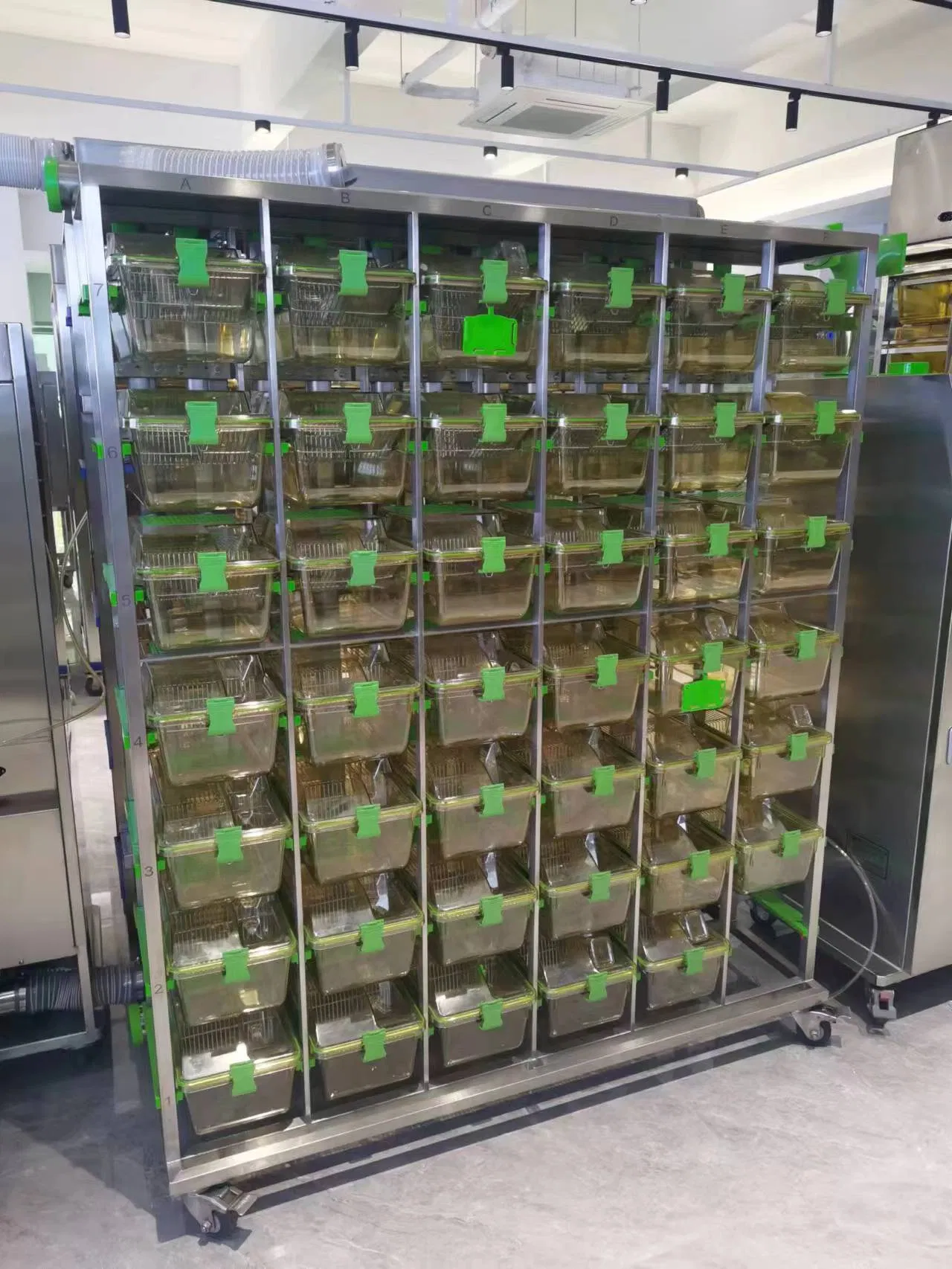

Lab Rat Ivc System Animal Individually Ventilated Cage Ivc with Rack

Customization:	Available
After-sales Service:	3years
Type:	Laboratory Rodent Breeding Cage Rack

Send Inquiry

Product Description

Basic Specifications

Usage:

Laboratory Rodent Breeding Cage Rack

Application:

Laboratory Rodent Breeding Cage Rack

Condition:

New

Warranty:

3 Years

Product Name:

Laboratory Rat Mouse Mice Breeding Cage

Configuration:

1 Tub, 1 Water Bottle, 1 Stainless Steel Lid

Lid Material:

S.S. 304 with Duly Spot Welded

Box Material:

High Quality Polypropylene

Characteristic:

Easy to Clean and Maintain, Long Service Life

Production:

200 Sets/Month

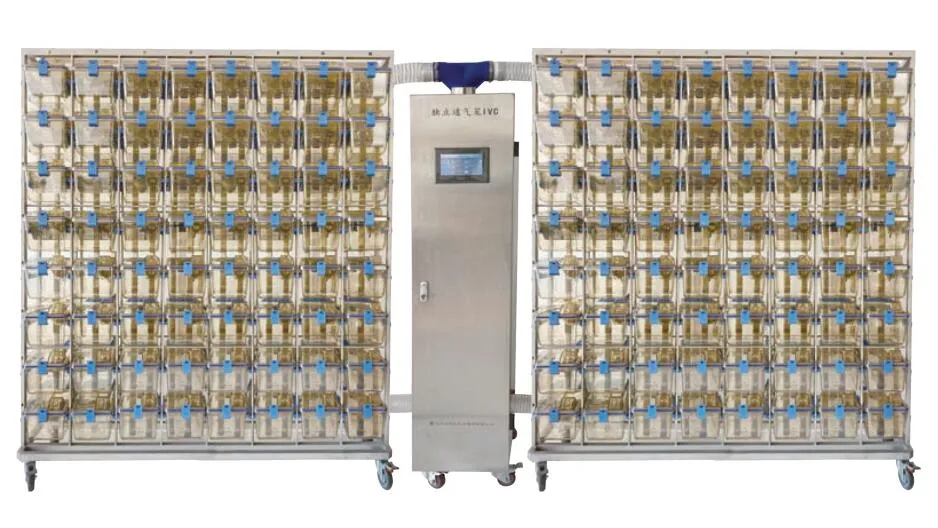

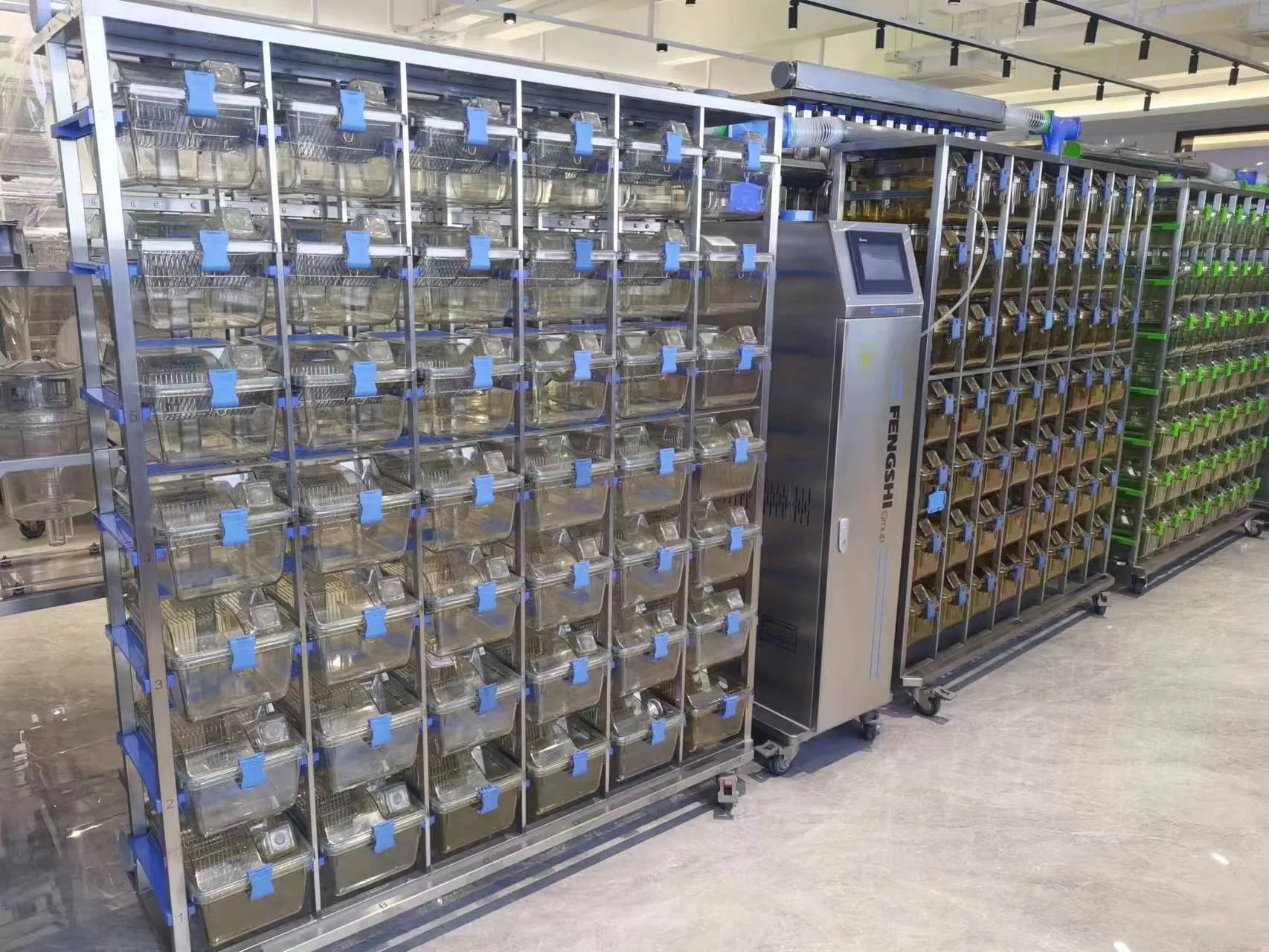

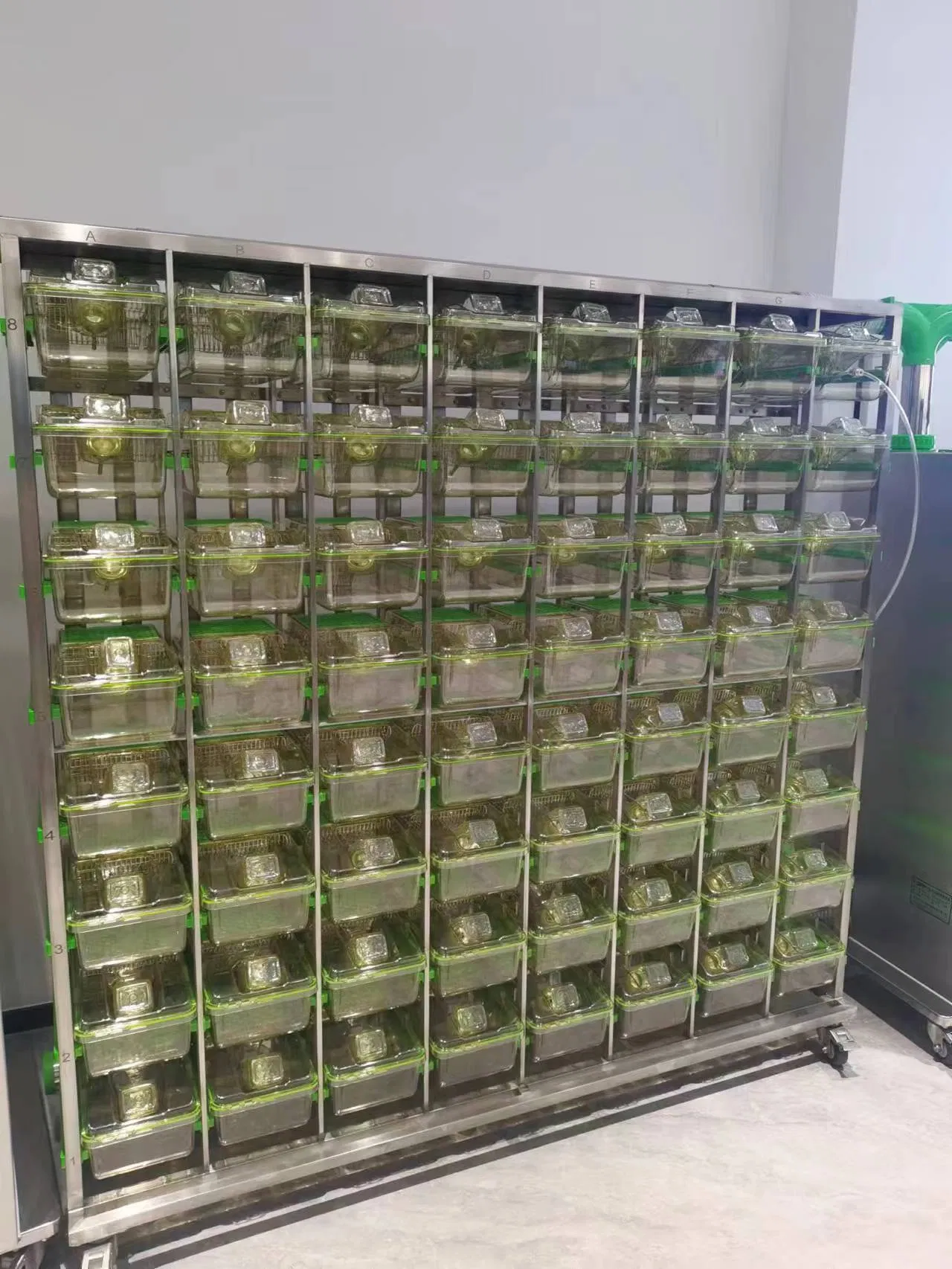

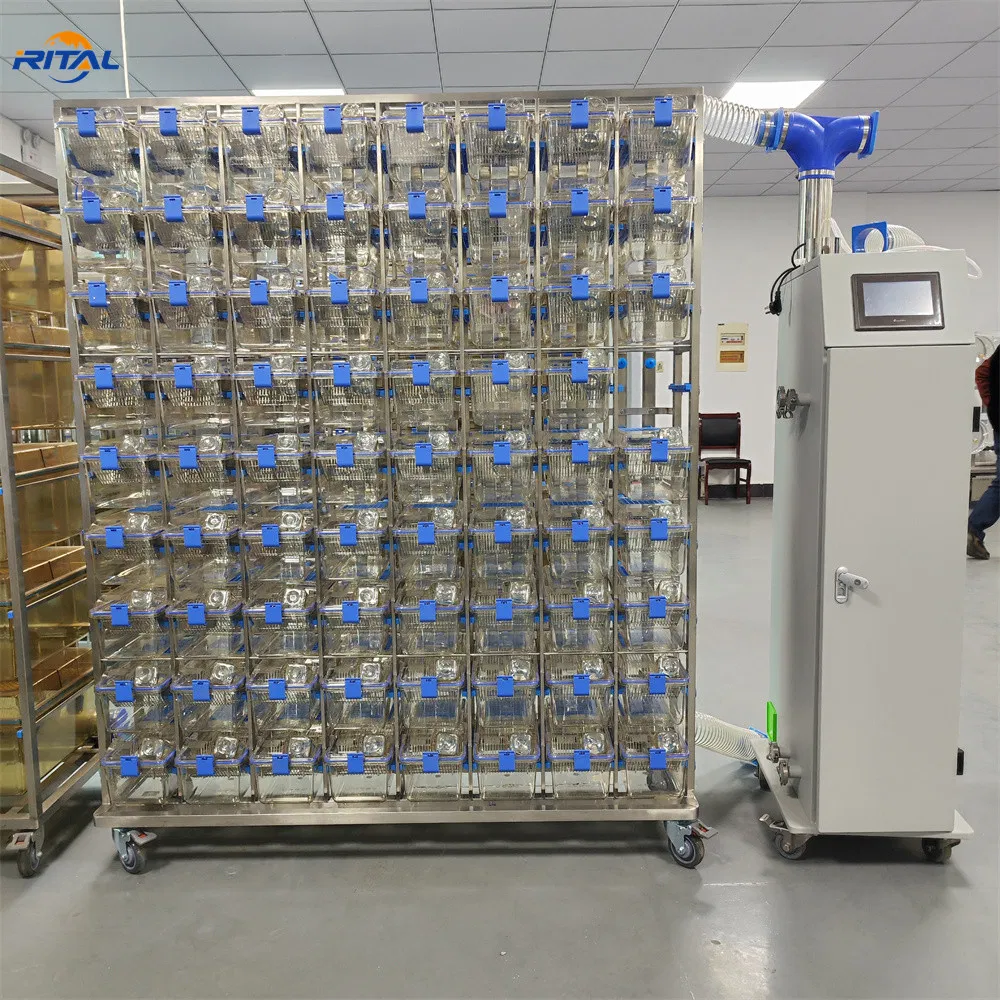

Individually Ventilated Cage System

Project: Individually ventilated cage system for keeping laboratory mice or rats, including cage, shelf, air handling device, water bottle, filter top, cage holder, and other accessories.

System Composition: Composed of three primary parts: the main engine, ventilation cage frame, and sealed cage box. Indoor air is passed through a high-efficiency filtration system into individual sealed boxes on the air duct rack, providing SPF animals with uniform, low-flow clean air.

High-efficiency HEPA filtration (≥99.995%, 0.3μm).
Equipped with 36v/48v lithium battery for 8+ hours of emergency power.
Reduces ammonia concentration and humidity inside the cage.
Effectively prevents cross-infection between animals.
Ensures health and safety for laboratory personnel.

Item Parameter	Standard Value
Number of Air Change	20-70 times/hour
Airflow Velocity	0.03-0.13 m/s
Pressure Difference	≥10 pa
Cleanliness Grade	ISO 5
Number of Colonies	0 per container hour
Noise	≤ 50 decibels

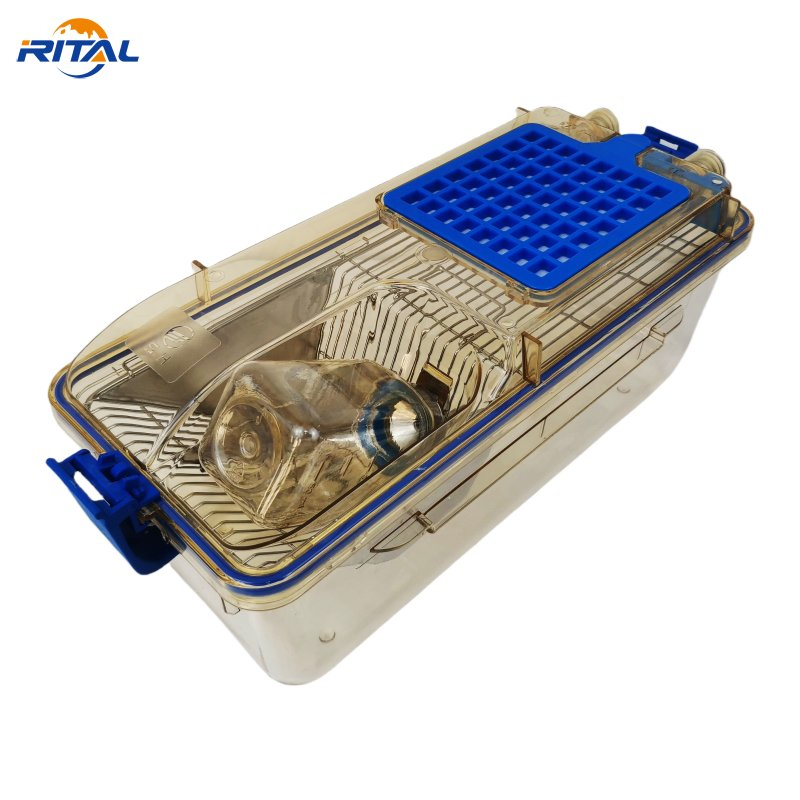

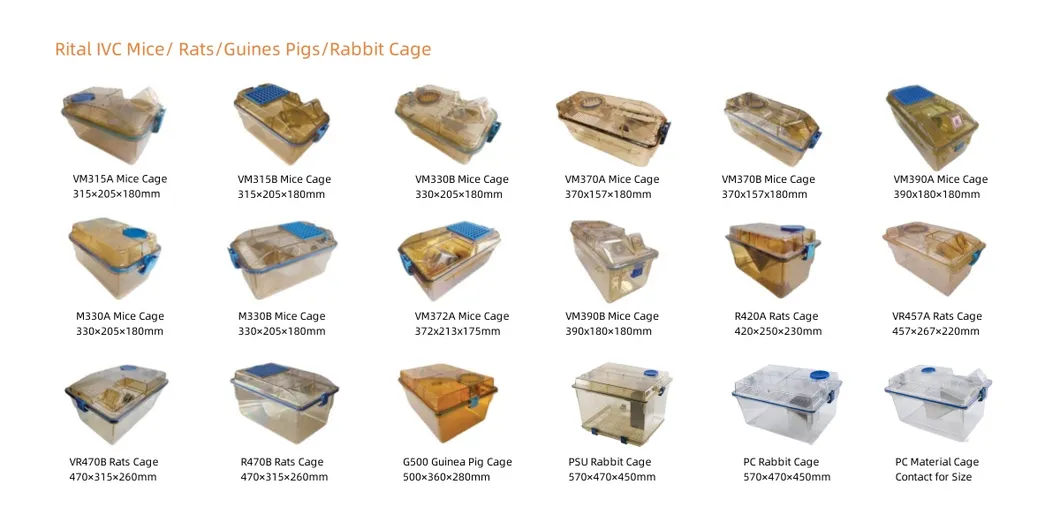

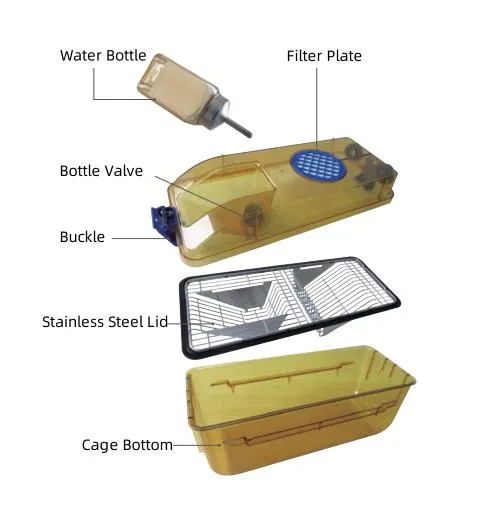

Cage Construction: The cage includes a body, iron bar cover, filter top cover, water bottle/nozzle, and holder. Materials available in Polycarbonate (PC) or Polystyrene Sulfone (PPSU) plastic (heat resistant up to 180ºC, autoclavable at 135ºC for 30min over 500 times).

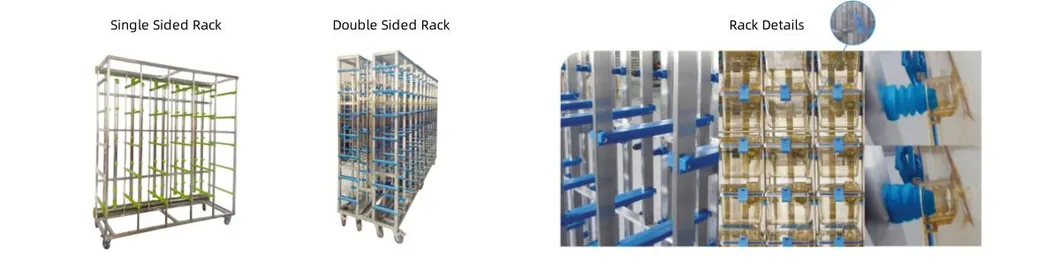

Hardware & Safety: The frame, wire cap, and bottle caps are manufactured from 304 Stainless Steel with a polished or matt finish. The Air Handling Unit (AHU) is an independent tower type to ensure no vibration is transferred to the animals.

External water bottles (250ml-500ml) can be replaced without removing the cage.
Ergonomic design for easy movement with foot-operated braking systems.

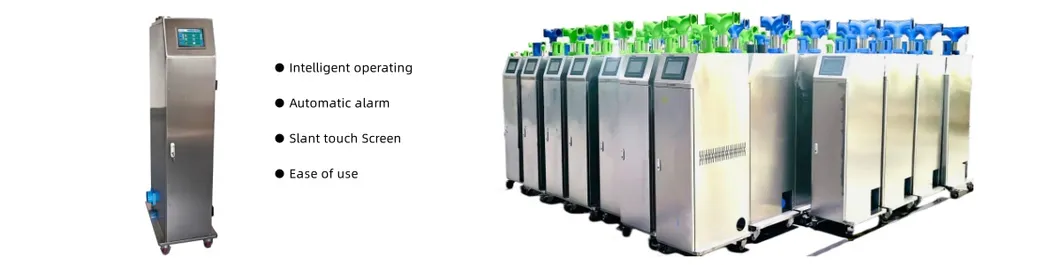

Real-time display unit for speed, temperature, humidity, and pressure.
Advanced alarm system for filter blockage or parameter deviations.
Blower noise kept below 50 decibels for animal comfort.

Frequently Asked Questions

What is the filtration efficiency of the IVC system?

The system utilizes high-efficiency HEPA filters with a filtration efficiency of ≥99.995% for particle sizes of 0.3μm, ensuring an ISO 5 cleanliness grade.

How does the system handle power outages?

The equipment is equipped with a 36v/48v lithium battery backup that can maintain full operation for more than 8 hours during a power failure.

Are the cages autoclavable?

Yes, the PPSU plastic cages are designed for high-temperature resistance up to 180ºC and can withstand 135ºC high-pressure steam sterilization more than 500 times without deformation.

Can the water bottles be changed without disturbing the animals?

Yes, the external water bottle design allows for replacement without removing the cage from the rack, significantly reducing the opening frequency and animal stress.

How does the system monitor the internal environment?

The IVC system features a display unit that provides detailed real-time data on air supply/exhaust speed, temperature, humidity, and air pressure within the cages.

Does the ventilation motor cause noise or vibration stress?

The air handling unit is an independent tower type to prevent vibration transfer. Noise levels are kept below 50 decibels to ensure a calm environment for the laboratory animals.
