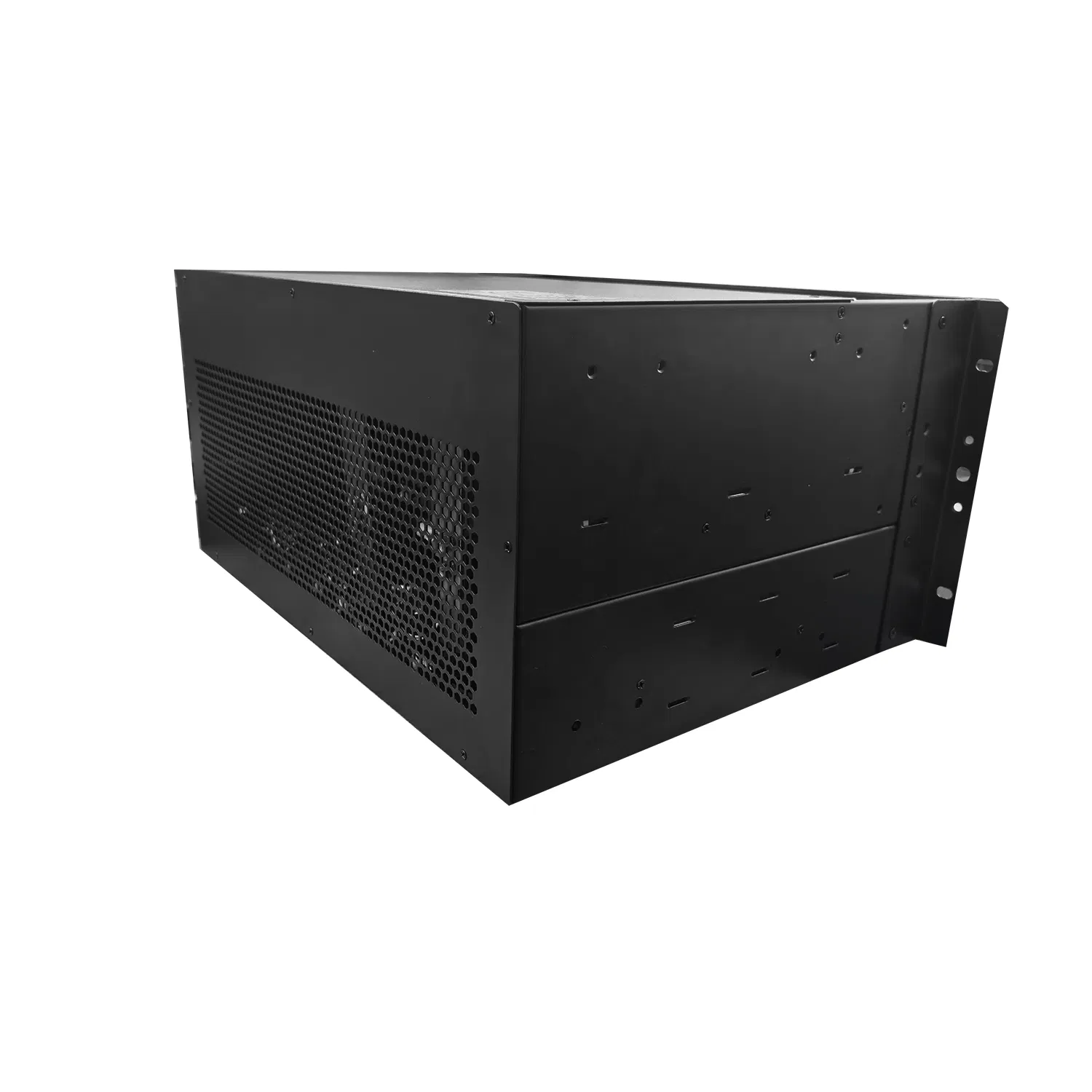

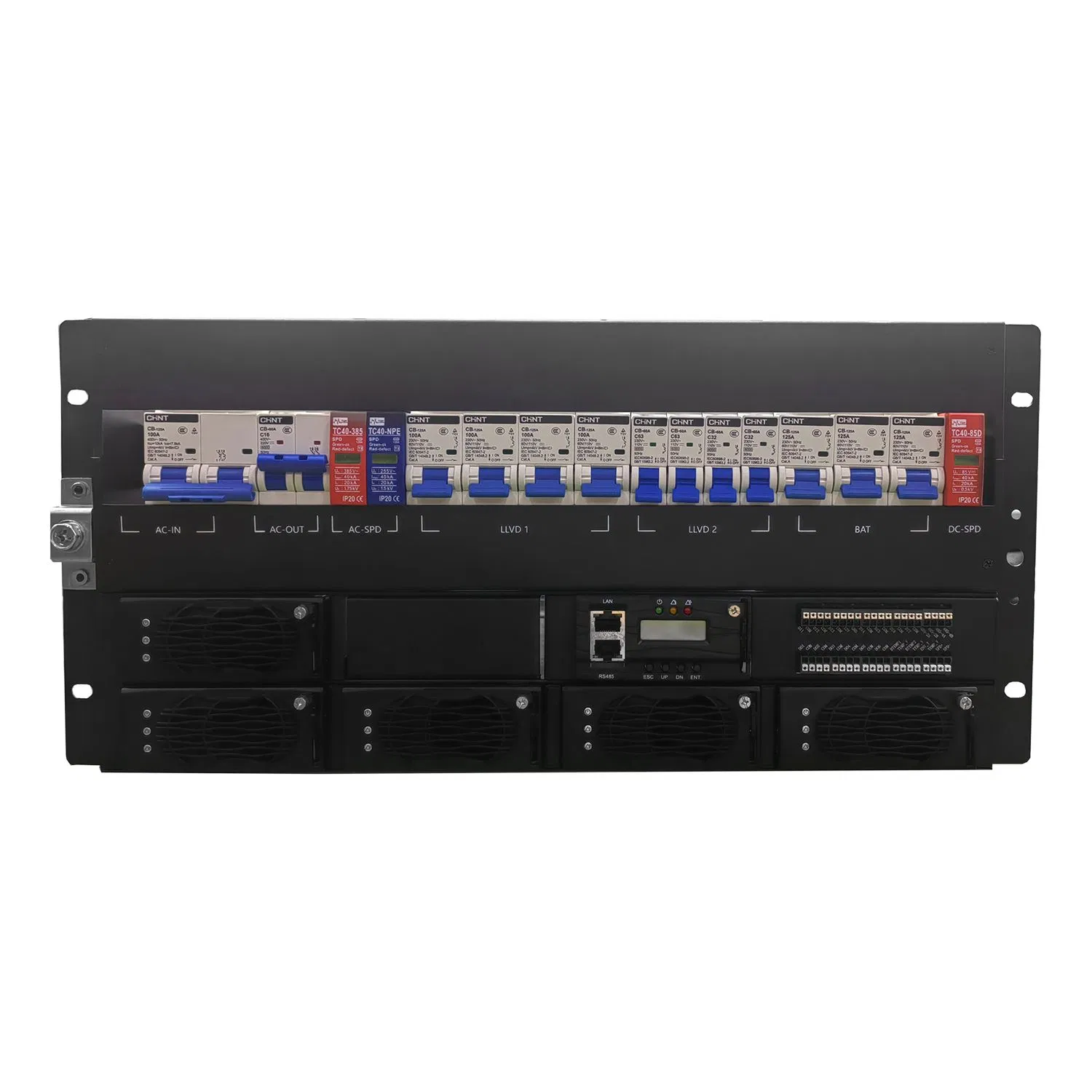

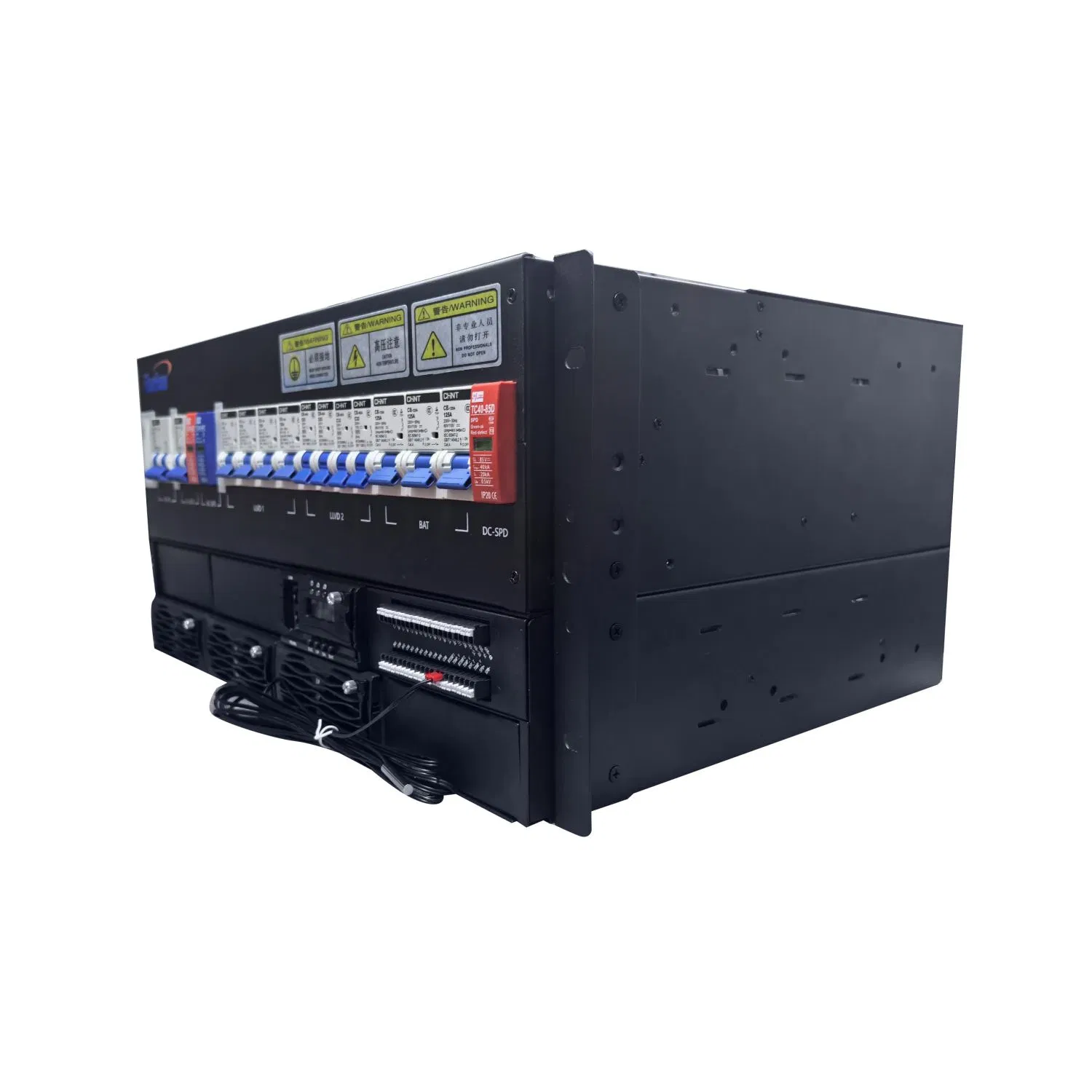

48V 18kw 19 Inch Rack Mount Rectifier System

1 / 5

48V 18kw 19 Inch Rack Mount Rectifier System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Info & Technical Specifications

Model NO.

BWT220/48-300AS

Output Power

18000W

Input Voltage

220V

Modulation

PWM

Certification

CE, ISO

Product Name

Rectifier System

Protection

Short Circuit, Overtemp, Overload, Overvolt

Specification

482*410*220mm

RCT2000 Series Rectifier System (48Vdc)

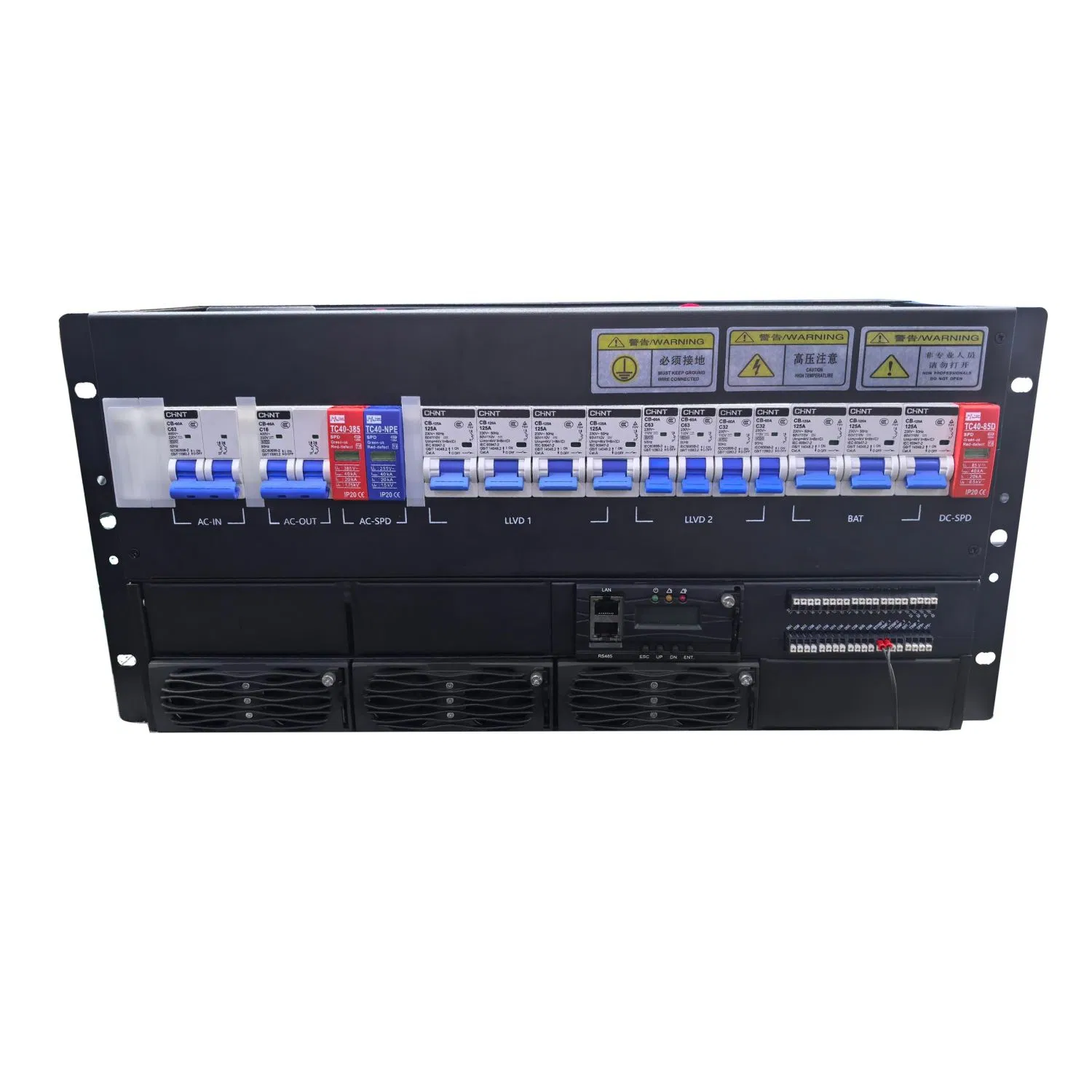

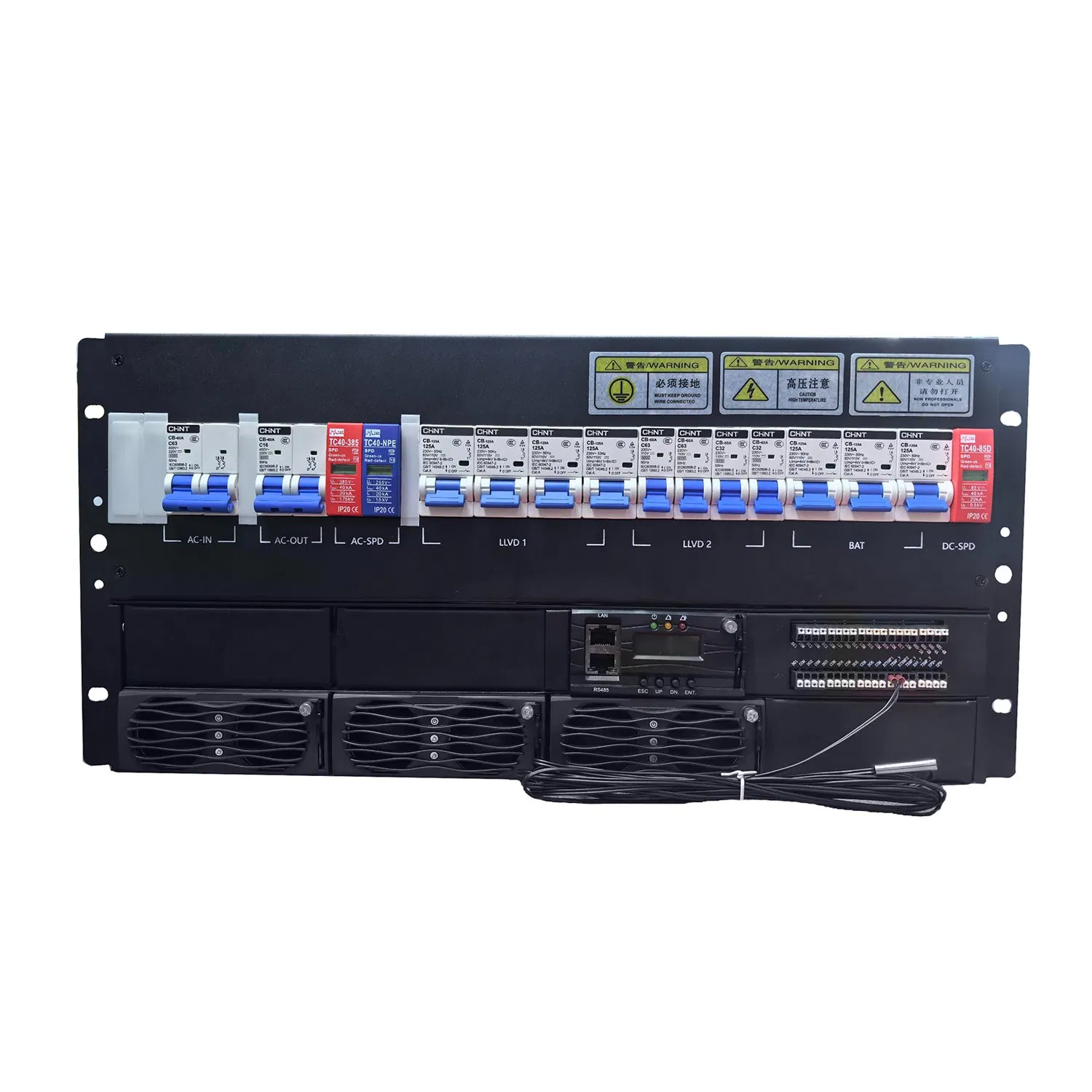

Embedded DC Power System is widely deployed in Telecom and Industrial environments. The system consists of power distribution units, rectifier modules, and monitoring modules with customizable configurations.

Widely operating range of AC input voltage: 90~290Vac

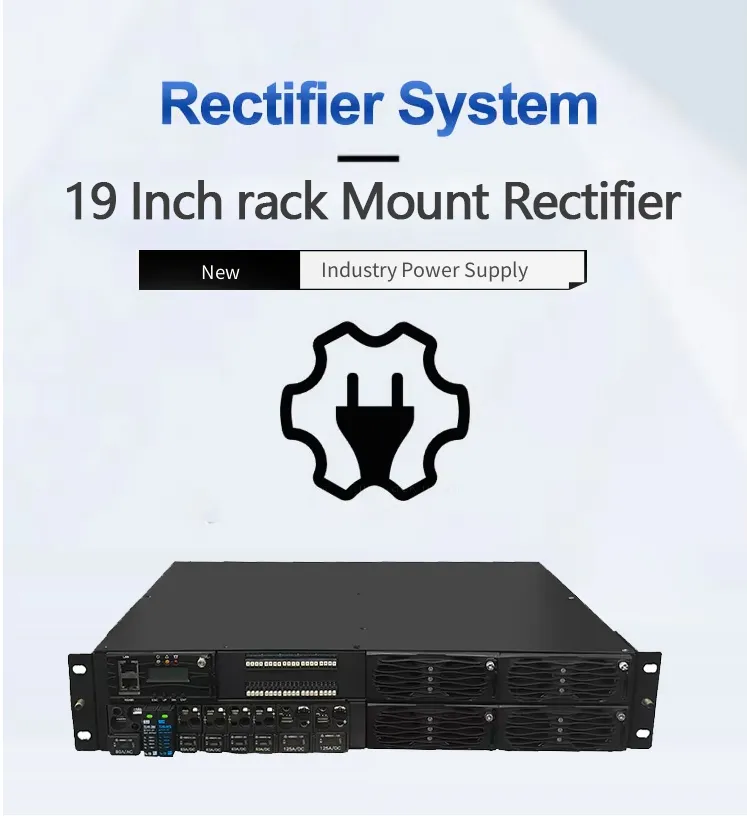

Compact 19-inch rackmount shelf

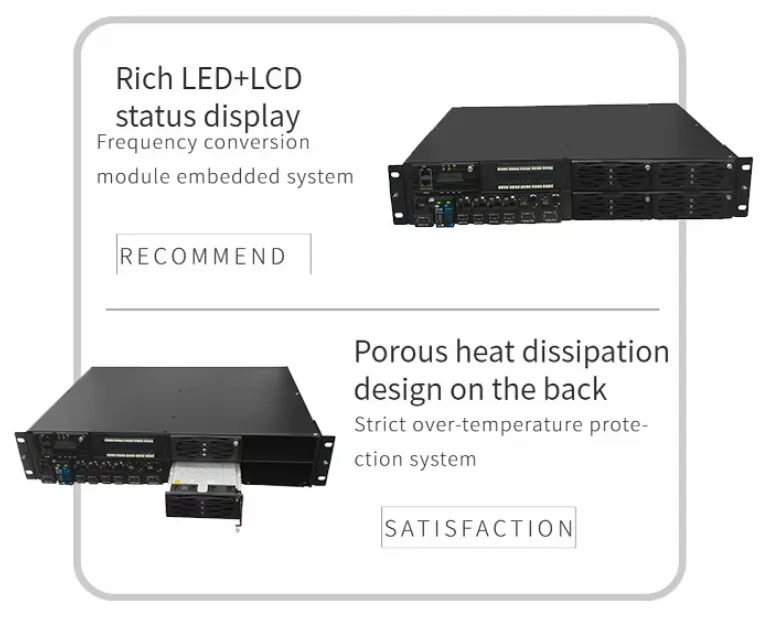

Real-time detection of operating status with sound-light alarm

Perfect battery management with accessory temperature detector

50 amp output per module, up to 800 amp system capacity max

System Parameters

Parameter	Details
Rectifier Module	BR483000 6PCS
Efficiency	96%
Power Capacity(Max)	18KW
Input Current	81.81A
Dimensions (HWD)	220mm(5U) * 482mm(19") * 380mm
Weight	Approx. 40KG
Classification	IP21

Model Configurations

Model	Configuration Highlights	Size (WDH)
BWT220/48-30AS	1800W, 30A Output, SNMP, Monitor, BLVD	48238044mm
BWT220/48-60AS	3600W, 60A Output, SNMP, Monitor, BLVD	48238088mm
BWT220/48-120AS	7200W, 120A Output, SNMP, Monitor, BLVD	48238088mm

Customization Range

Input Options: 220VAC +/-15% or 110VAC +/-15% (50/60Hz)
Output 24VDC: 10A to 300A options
Output 48VDC: 10A to 200A options
Output 110V/220VDC: 10A to 300A options

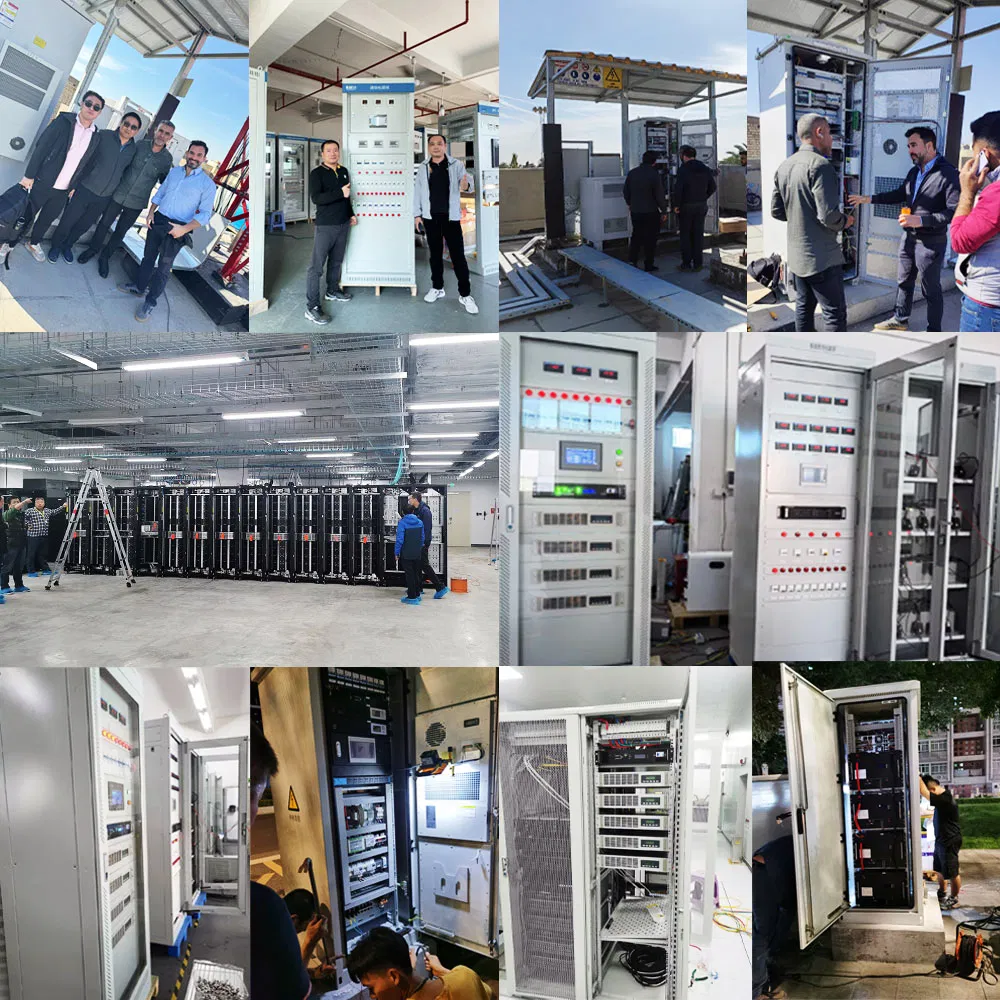

Manufacturing Excellence & Certifications

Frequently Asked Questions

Do you have a charging solution?

Yes, our systems are suitable for battery charging usage, widely used for N+1 power supply and battery charging management.

Does the product support the SNMP function?

Yes, 90% of our products support SNMP. All products include built-in RS485 communication as standard.

Can the system adapt to high temperatures?

Yes, it supports temperatures from -20℃ to 60℃. Stable operation remains unchanged in high-temperature environments.

How is the overload capacity?

The system features super overload capacity, can withstand full load startup, and includes a bypass switch for overloaded conditions.

What are the protection functions?

Features include input under-voltage protection, anti-DC reverse connection, buffer protection, over-voltage/overload/short-circuit/over-temperature protection, and temperature-controlled fans.

Can I choose the mains mode for the power supply?

Yes, our systems support both AC main and DC main power supply. Modes can be toggled via the LCD panel or communication software.
