19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
1 / 5
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid
19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid

19'' Rack Mount 24VDC Rectifier System for Base Station/Power Grid

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

⚙️ Basic Information
Model NO.
BWT110/24-60AS
Output Power
1800W
Input Voltage
220V
Connection Mode
Parallel Switching Power Supply
Starting Mode
Self-excited Switching Power Supply
Voltage Regulating Mode
Width Modulation Type
Energy Transmission
Two-way Transmission
Modulation System
PWM
Certification
CE, ISO
Product Name
Rectifier System
Protections
Short Circuit, Overtemp, Overload, Overvolt
Application
Laboratory/CCTV Camera/Data Center
Specification
482*410*88mm
HS Code
8504401990
🚀 RCT2000 Series Rectifier System (24Vdc)
Key Features
🔌
Wide Input Range
Widely operating range of AC input voltage: 90~290Vac.
📏
Compact Design
Compact 19-inch rackmount shelf, 2U height saving space.
🔔
Smart Monitoring
Real-time detection of operating status with sound-light alarm.
🔋
Battery Management
Perfect battery management with accessory battery temperature detector.

The Embedded DC Power System is widely deployed in Telecom and Industrial environments. The system consists of power distribution units, rectifier modules, and monitoring modules with customizable configurations.

Rectifier Specifications
ComponentDetails
Rectifier ModuleBR241800 (1 PCS)
Efficiency93.2%
Power Capacity (Max)1800W

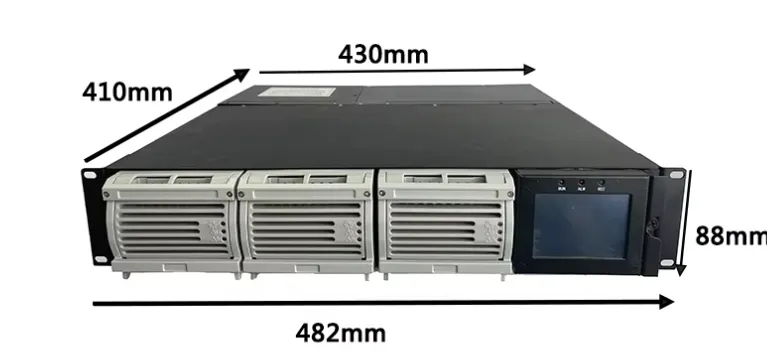

Dimensions (W*D*H)482mm * 410mm * 88mm (2RU)
WeightApprox. 16KG
ClassificationIP21
Detailed Output Parameters
ParameterSpecification
Input Configuration220Vac (L+N+PE) / 85Vac-300Vac
Output Voltage Range21-29VDC (26.7Vdc nominal)
Max Output Current60A (Adjustable 0~120A for module)
Voltage Regulation≤±1%
Ripple Voltage≤200mV (0-20MHz)
MonitoringTCP/IP, Rs485, SNMP (Optional), LCD Display
Operating Temp.-40 to +55°C (-40 to +131°F)
📸 Product Showcase
Rectifier System Overview
Rectifier System Rear View
Rectifier System Internal

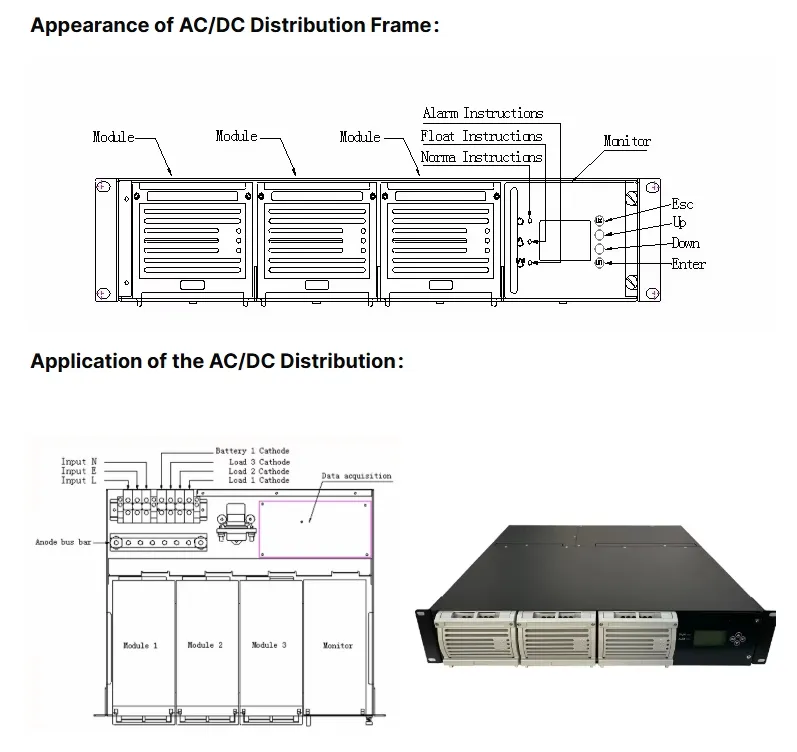

Rectifier System Panel
Frequently Asked Questions
What is the peak efficiency of the RCT2000 rectifier system?
The system achieves a high energy efficiency of 93.2%, reducing power loss and heat generation.
Can this system be installed in a standard server rack?
Yes, it is designed with a standard 19-inch width and a 2U (88mm) height, making it compatible with most rackmount environments.
What kind of remote monitoring does the system support?
The system supports multiple interfaces including TCP/IP, RS485, and SNMP (optional), allowing for comprehensive remote management.
How does the system handle extreme temperatures?
It is designed for industrial use with an operating temperature range from -40°C to +55°C (-40°F to +131°F).
Does the system include battery protection?
Yes, it features perfect battery management, including BLVD (Battery Low Voltage Disconnect) and temperature compensation sensors.
What is the maximum output current for this specific model?
The BWT110/24-60AS model provides a maximum output current of 60A at a nominal 24Vdc.
