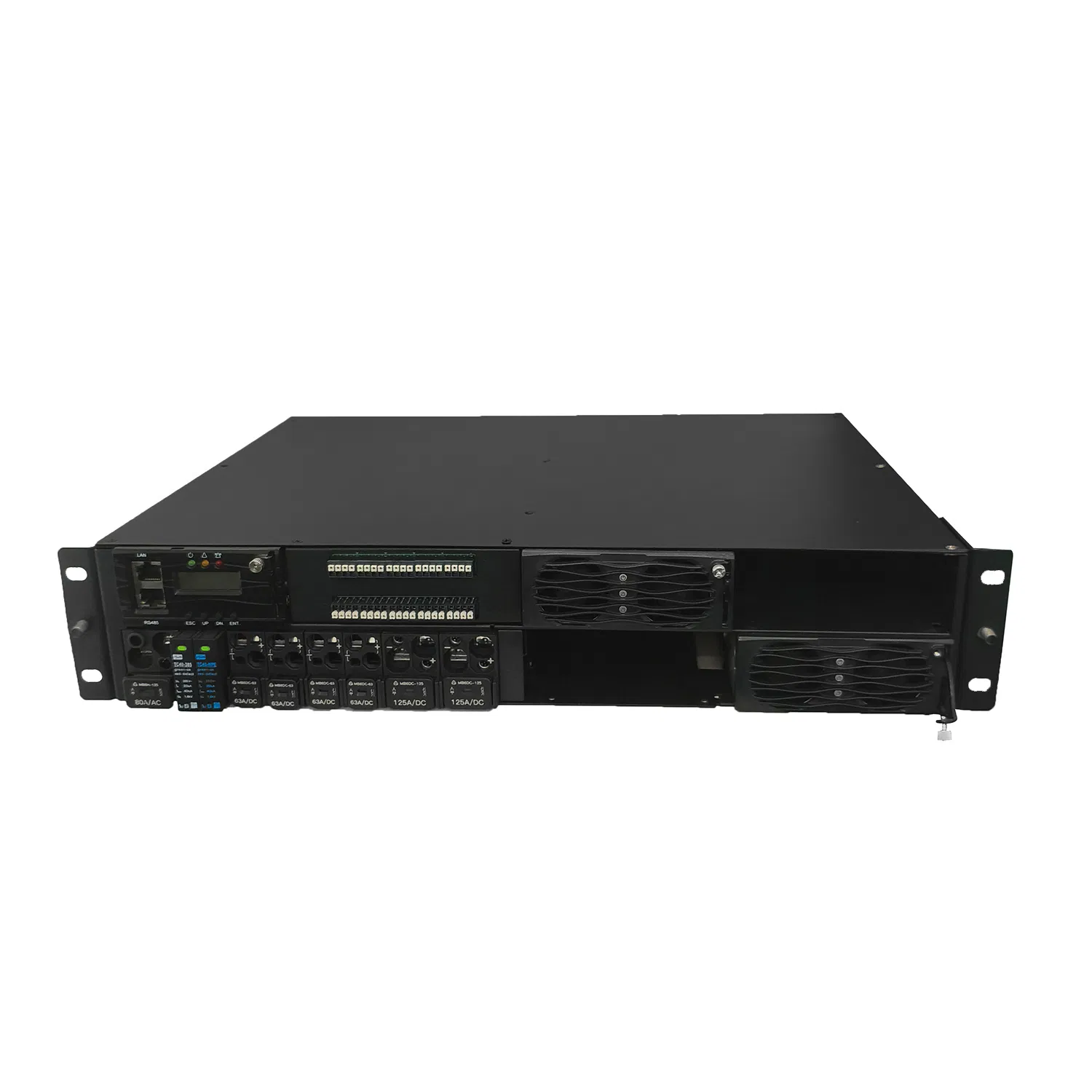

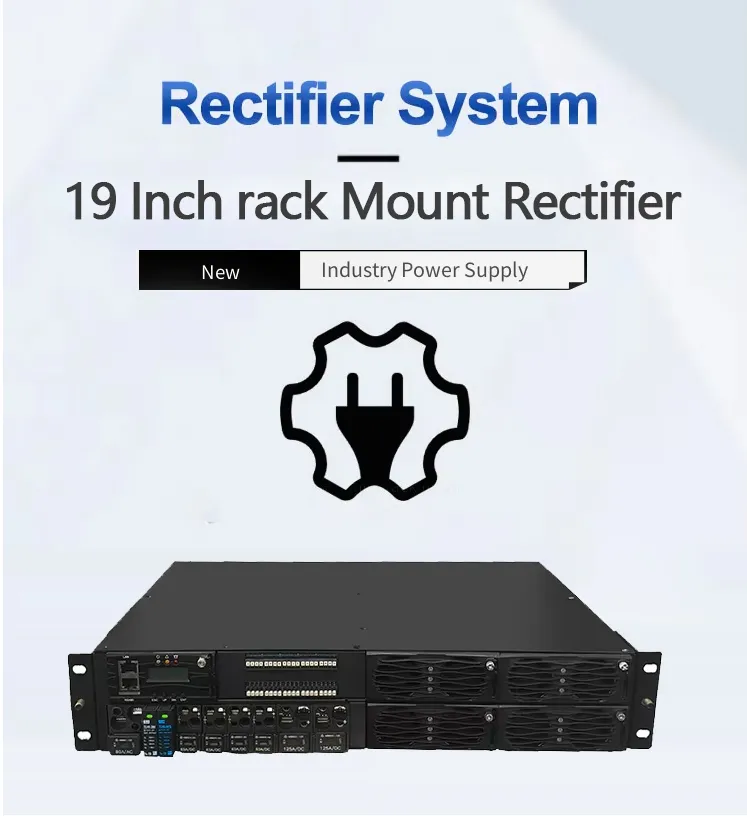

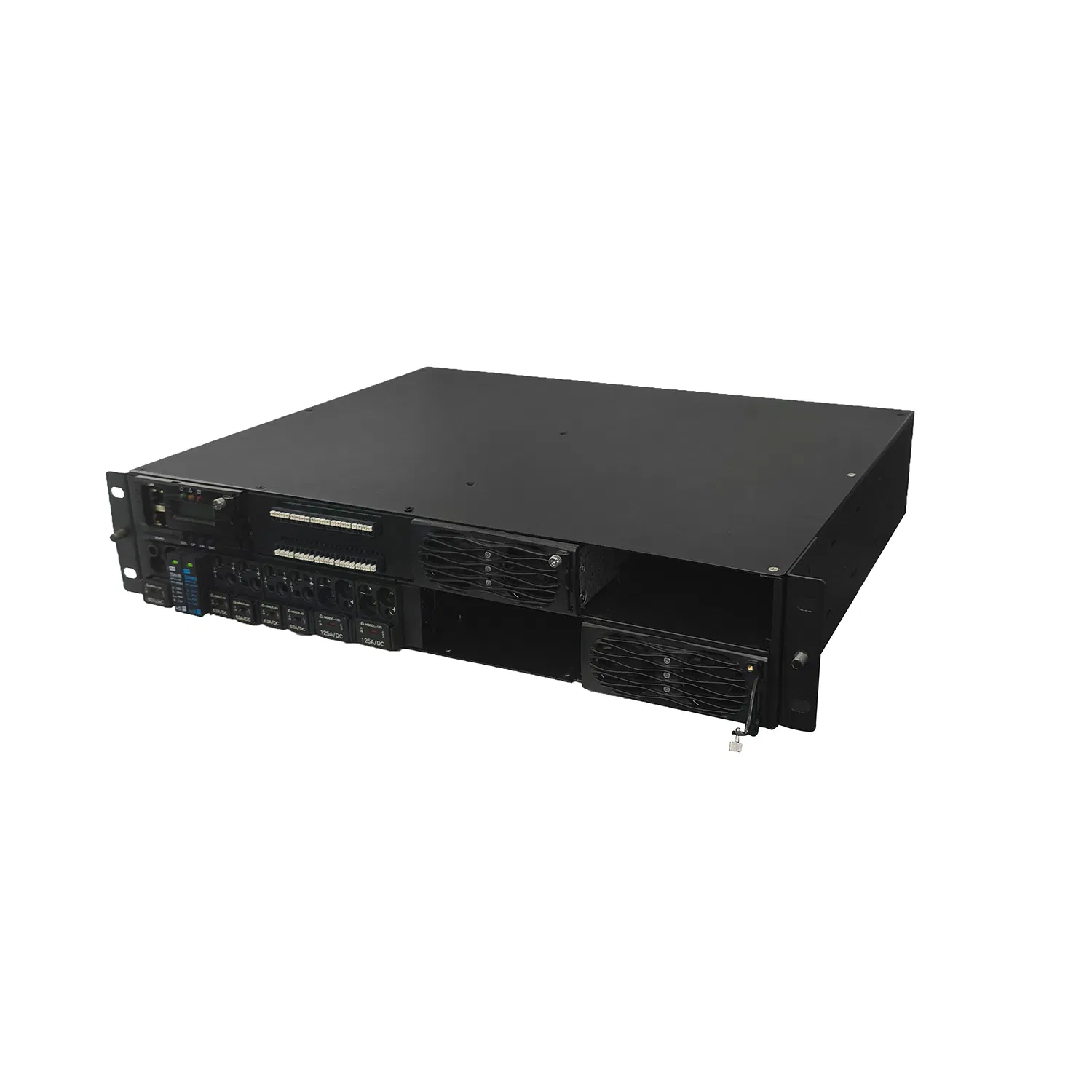

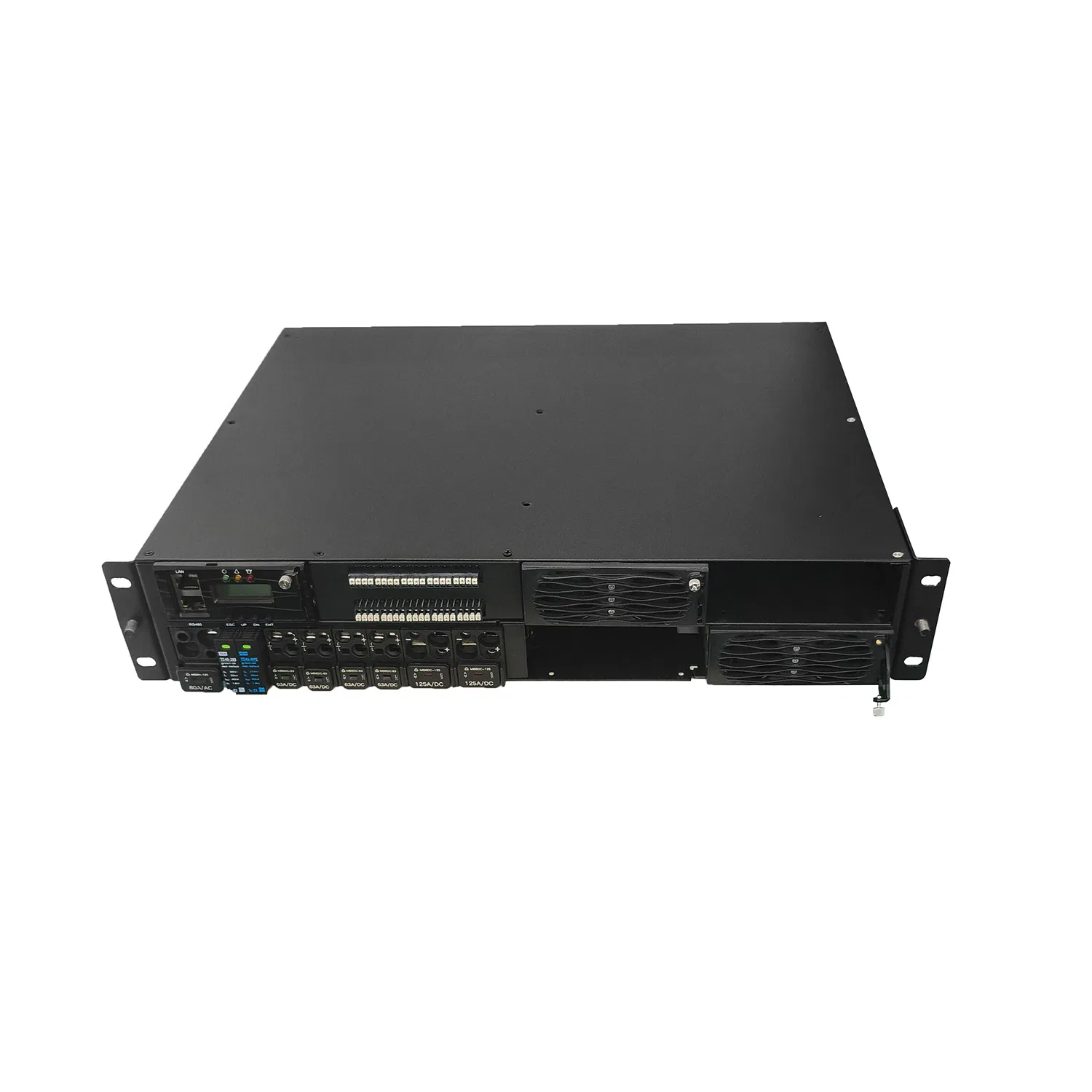

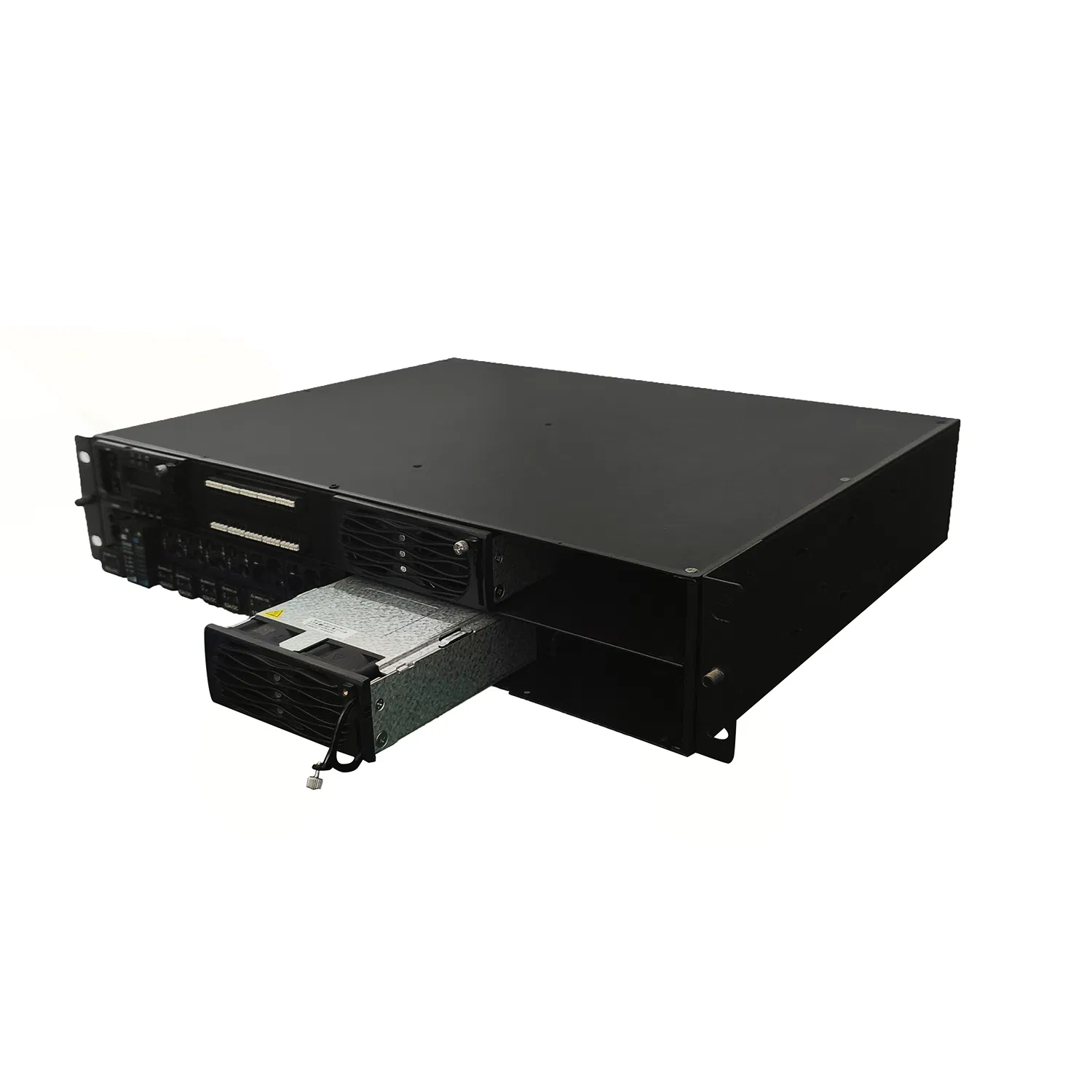

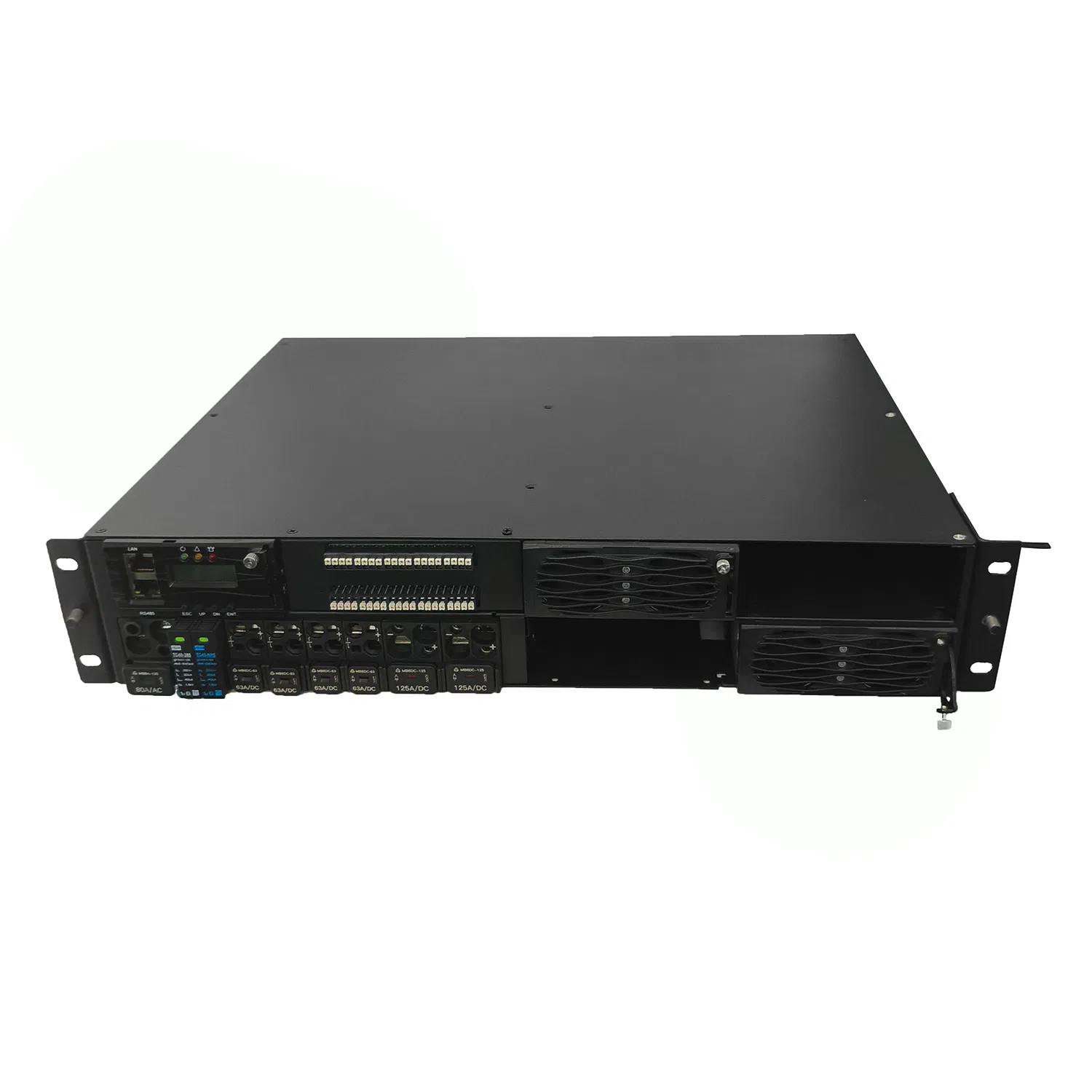

48VDC 220VAC 12kw 19 Inch Rack Mount Rectifier System

1 / 5

48VDC 220VAC 12kw 19 Inch Rack Mount Rectifier System

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Overview & Technical Specifications

Model NO.	BWT220/48-200AS
Output Power	12000W
Input Voltage	220V
Connection Mode	Parallel Switching Power Supply
Starting Mode	Self-excited Switching Power Supply
Voltage Regulating Mode	Width Modulation Type
Modulation System	PWM
Certification	CE, ISO
Protections	Short Circuit, Overtemp, Overload, Overvolt
Application	Laboratory / CCTV Camera / Data Center
Specification	482 * 410 * 88mm (19 Inch Rack Mount)
Classification	IP21
Efficiency	96%

Product Features

✓ Widely operating range of AC input voltage: 90~290Vac

✓ Compact 19-inch rackmount shelf for easy integration

✓ Real-time detection of operating status with sound-light alarm

✓ Perfect battery management with accessory temperature detector

✓ Modular design: 50A per module, up to 800A max system capacity

Embedded DC Power Systems are designed for Telecom/Industrial environments. The system consists of power distribution units, rectifier modules, and monitoring modules with customizable configurations.

Rectifier Configuration

Model	Configuration Details	Size (WDH)	Weight
BWT220/48-30AS	1800W 30A Output, 1 Module, Monitor, SNMP, BLVD	48238044mm	10kg
BWT220/48-60AS	3600W 60A Output, 2 Modules, Monitor, SNMP, BLVD	48238088mm	12kg
BWT220/48-90AS	5400W 90A Output, 3 Modules, Monitor, SNMP, BLVD	48238088mm	14kg
BWT220/48-120AS	7200W 120A Output, 4 Modules, Monitor, SNMP, BLVD	48238088mm	16kg

Customizable Output Range

We provide flexible customization for HF Switching Power Supplies:

24VDC: 10A to 300A options

48VDC: 10A to 200A options

110VDC / 125VDC: 20A to 300A options

220VDC: 10A to 150A options

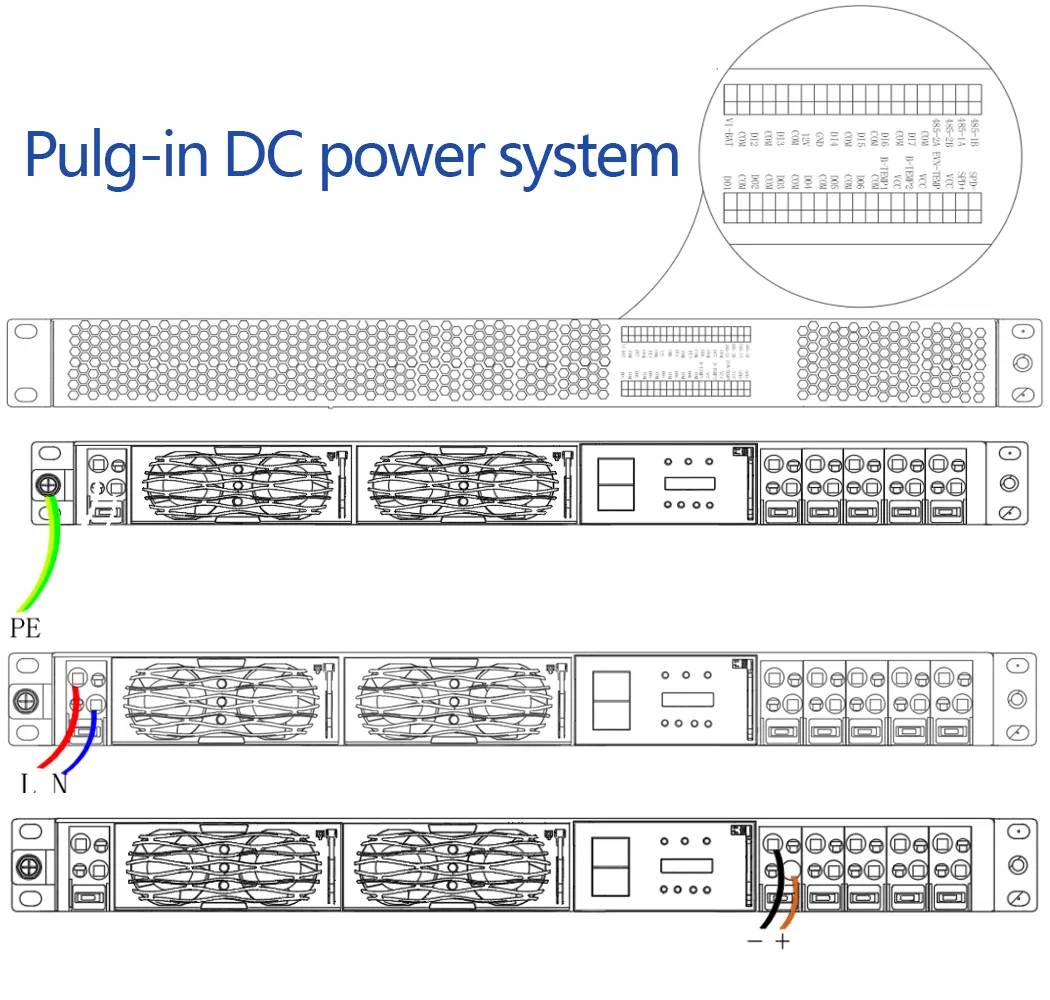

Monitoring & Interface

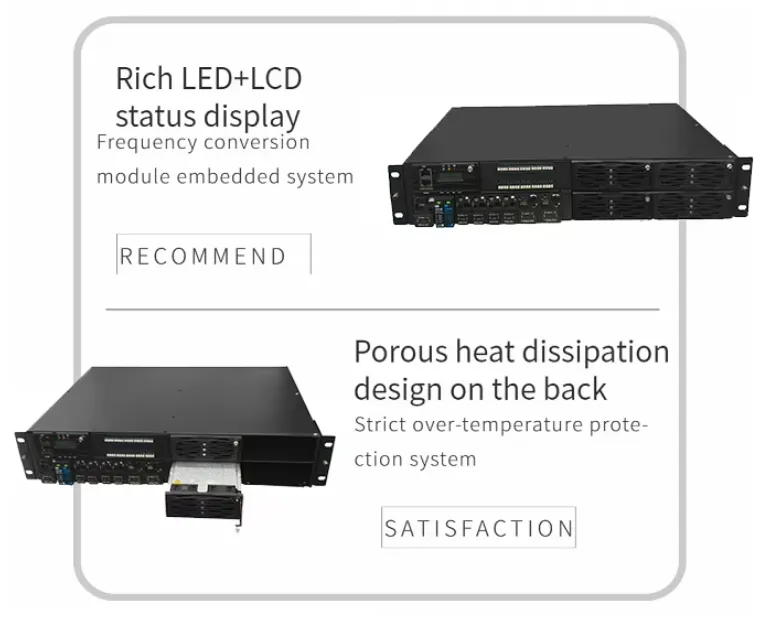

Digital Input	6 DI	LCD Display	Voltage, Frequency, Current, Environment
Local Interface	Display, Menu Structure, Key Pads, LED	Power Status	City power, Output, Under/Over Voltage
Remote Monitor	TCP/IP, RS485, SNMP (Optional)	Operating Temp	-40 to +55°C
Historical Records	Up to 1000 Units	MTBF	> 100,000 hours (@25°C)

Production Excellence & Certifications

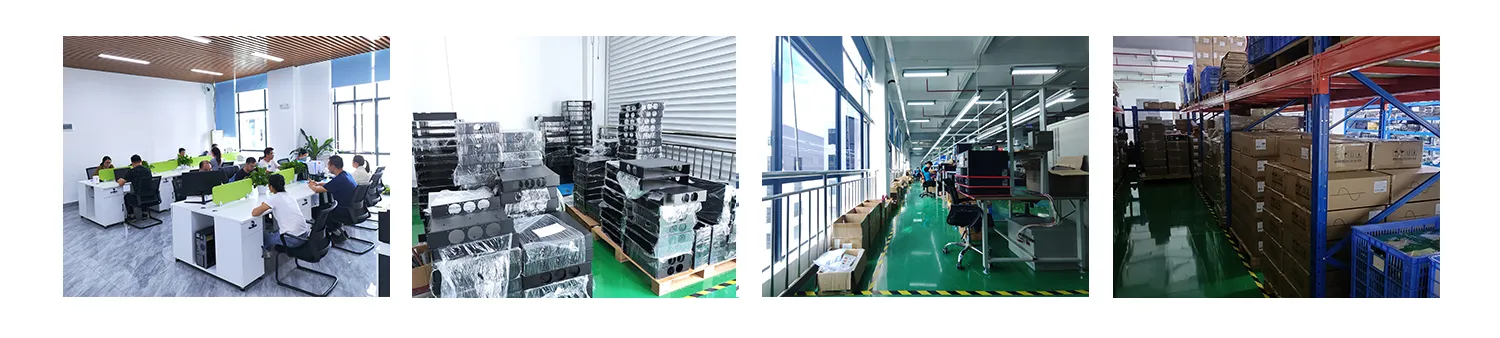

Our facility covers 1000 square meters with 3 advanced technology production lines, ensuring a capacity of 1000 units per month. Every product undergoes a complete quality control system including material control, SMT, assembly, aging tests, and final inspection.

Frequently Asked Questions

Do you have a charging solution?

Yes, our rectifier systems are widely used for N+1 power supply and integrated battery charging system management.

Does the product support the SNMP function?

Yes, 90% of our products support SNMP. Additionally, all products come with built-in RS485 communication as standard.

Can the system operate stably in high temperatures?

The system supports stable operation within a range of -20℃ to 60℃. For increased lifespan in extreme heat, we recommend air conditioning cooling.

What about the load capacity of the inverter?

It features superior overload capacity and can withstand full load startup. A bypass switch is included to switch to bypass power during overload conditions.

What is the noise level during operation?

The noise level of the high-frequency system is typically ≤55dB.

What protection functions are included?

Input under-voltage, anti-DC reverse connection, buffer protection, over-voltage, overload, short-circuit, and over-temperature protection via temperature-controlled fans.
