🚀 Product Features

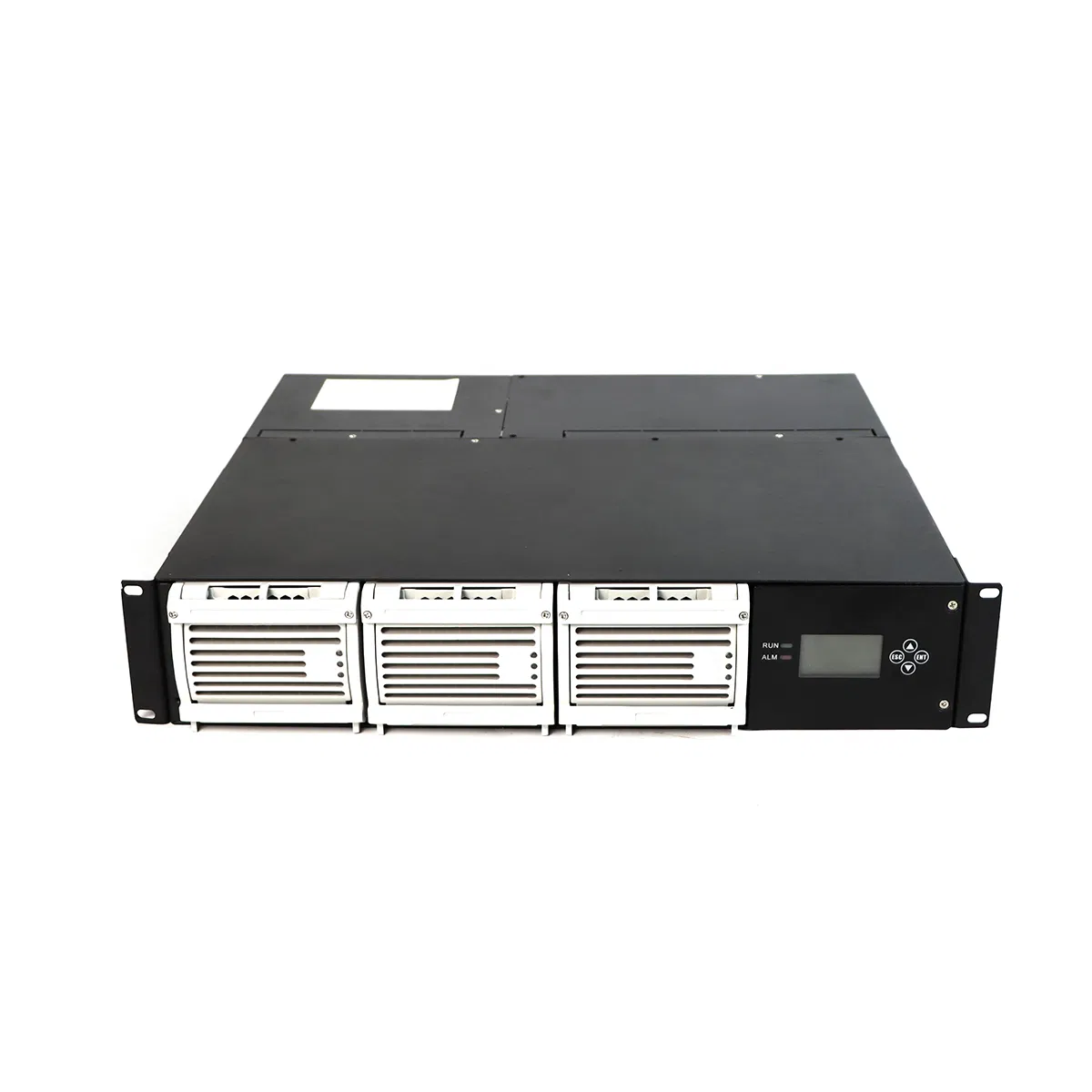

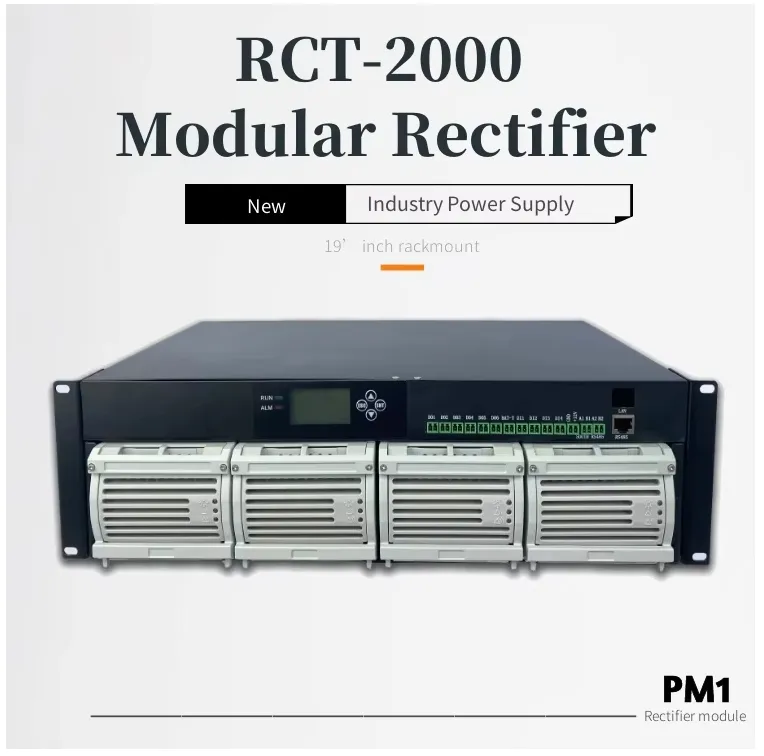

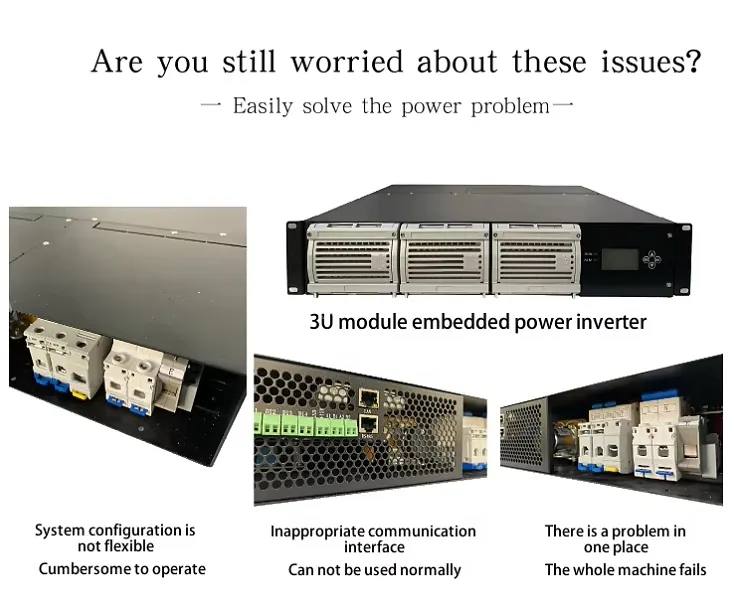

RCT2000 Series Rectifier System (48Vdc)
Embedded DC Power System is widely deployed in the Telecom/Industrial environment today. The system can be composed of one or more rectifier modules and monitoring modules.
✔ Widely operating range of AC input voltage: 90~290Vac
✔ Compact 19' inch rackmount shelf (2U Height)
✔ Real-time detection of operating status with sound-light alarm
✔ Perfect battery management including temperature detector
✔ 50 amp output per module, 150 amp max system capacity
✔ High Efficiency: 93.2%
❓ Frequently Asked Questions
1. What is the maximum power output of the RCT2000 Series?
The system has a maximum power capacity of 9000W with a total output current of up to 150A-165A depending on configuration.
2. Can this system be mounted in a standard server rack?

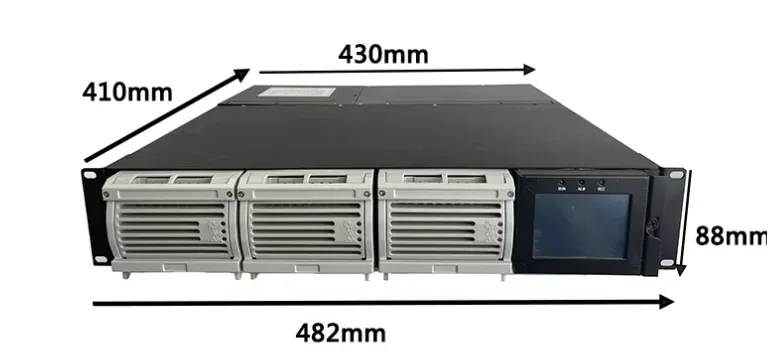

Yes, it is designed as a compact 19-inch rackmount shelf with a 2U (88mm) height, making it suitable for standard telecom and data center racks.
3. What are the input voltage requirements?
The system supports a wide AC input voltage range from 90Vac to 290Vac (rated at 220Vac), ensuring stability in various power environments.
4. Does the system include remote monitoring capabilities?

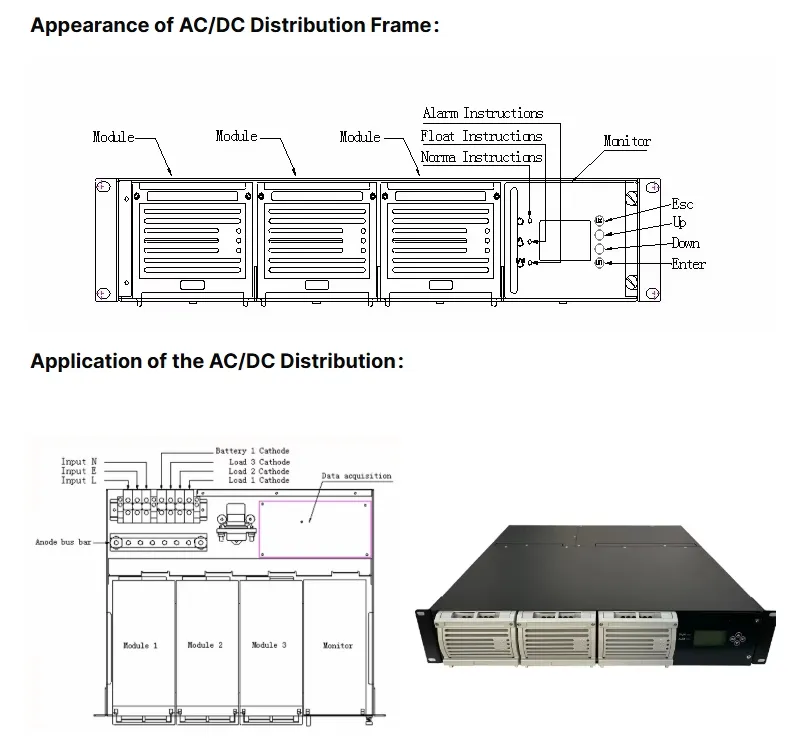

Yes, it supports local interface (LCD display, LED, Key Pads) and optional remote monitoring via TCP/IP, Rs485, and SNMP, including 6 alarm relays.
5. What protection features are built into the rectifier?
The system includes comprehensive protection against short circuits, over-temperature, overload, and over-voltage to ensure the safety of the connected equipment.
6. Is battery management included?
Yes, the system features perfect battery management, including an accessory battery temperature detector, self-test functions, and temperature compensation.
