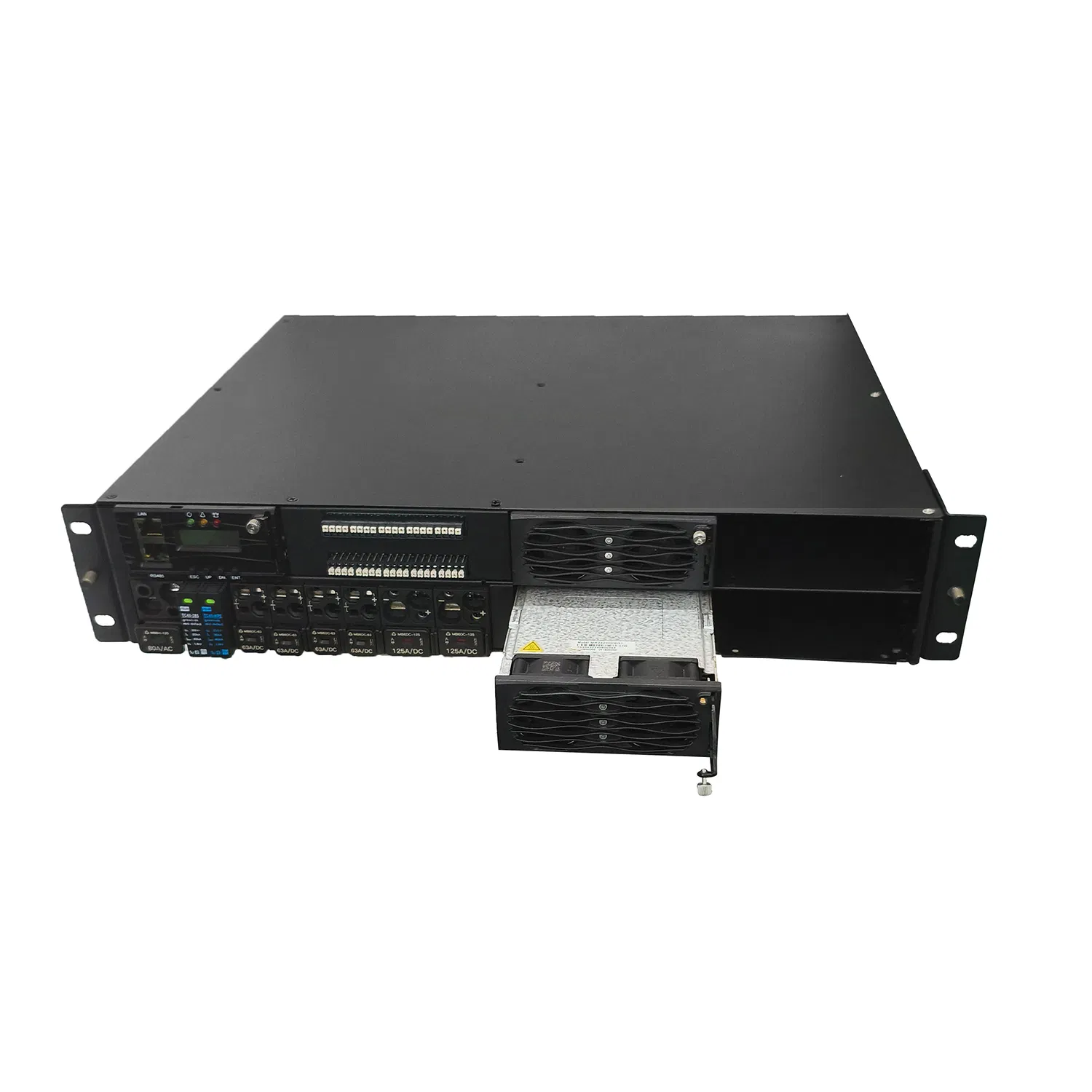

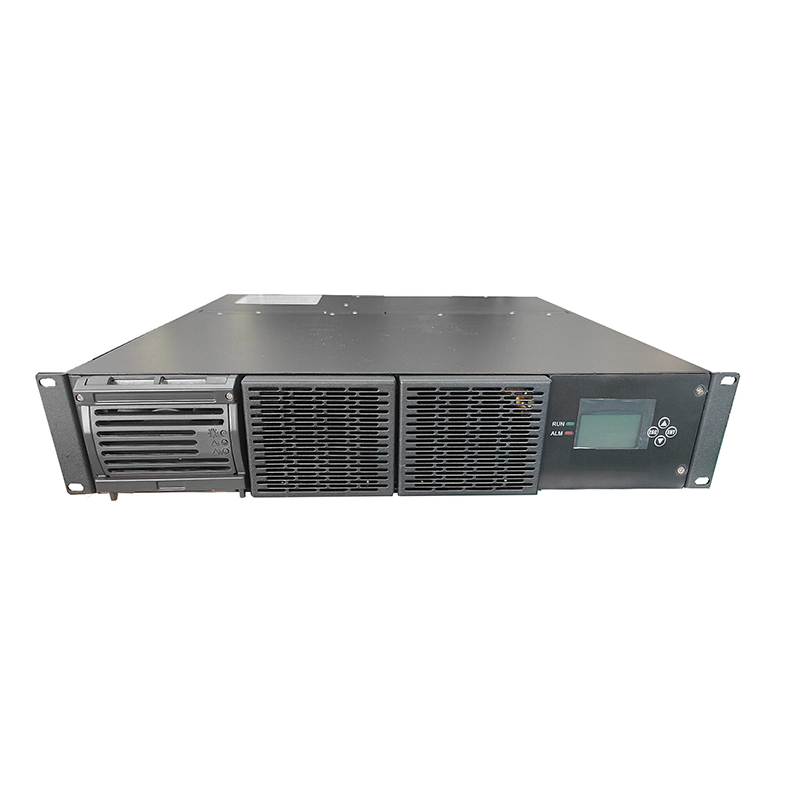

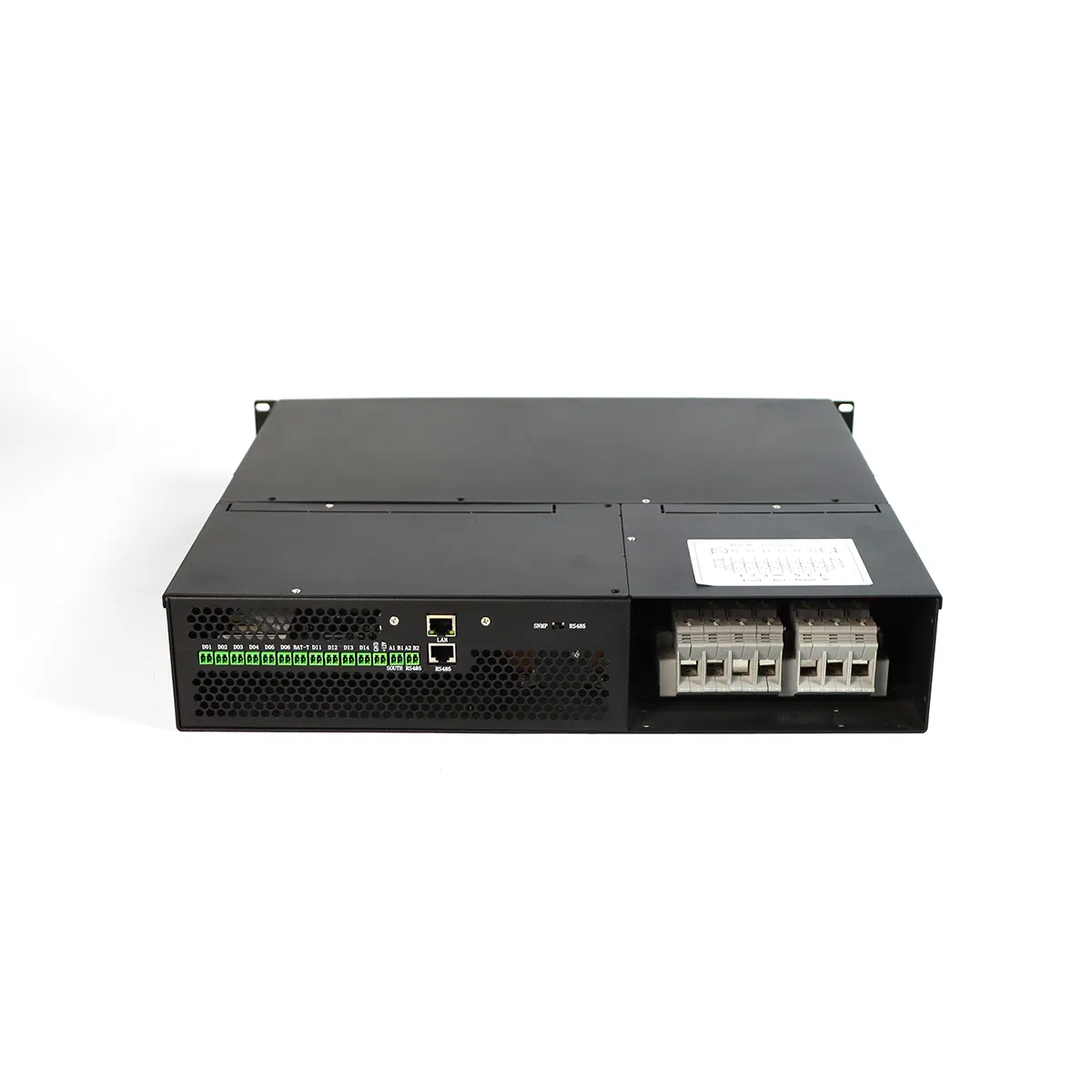

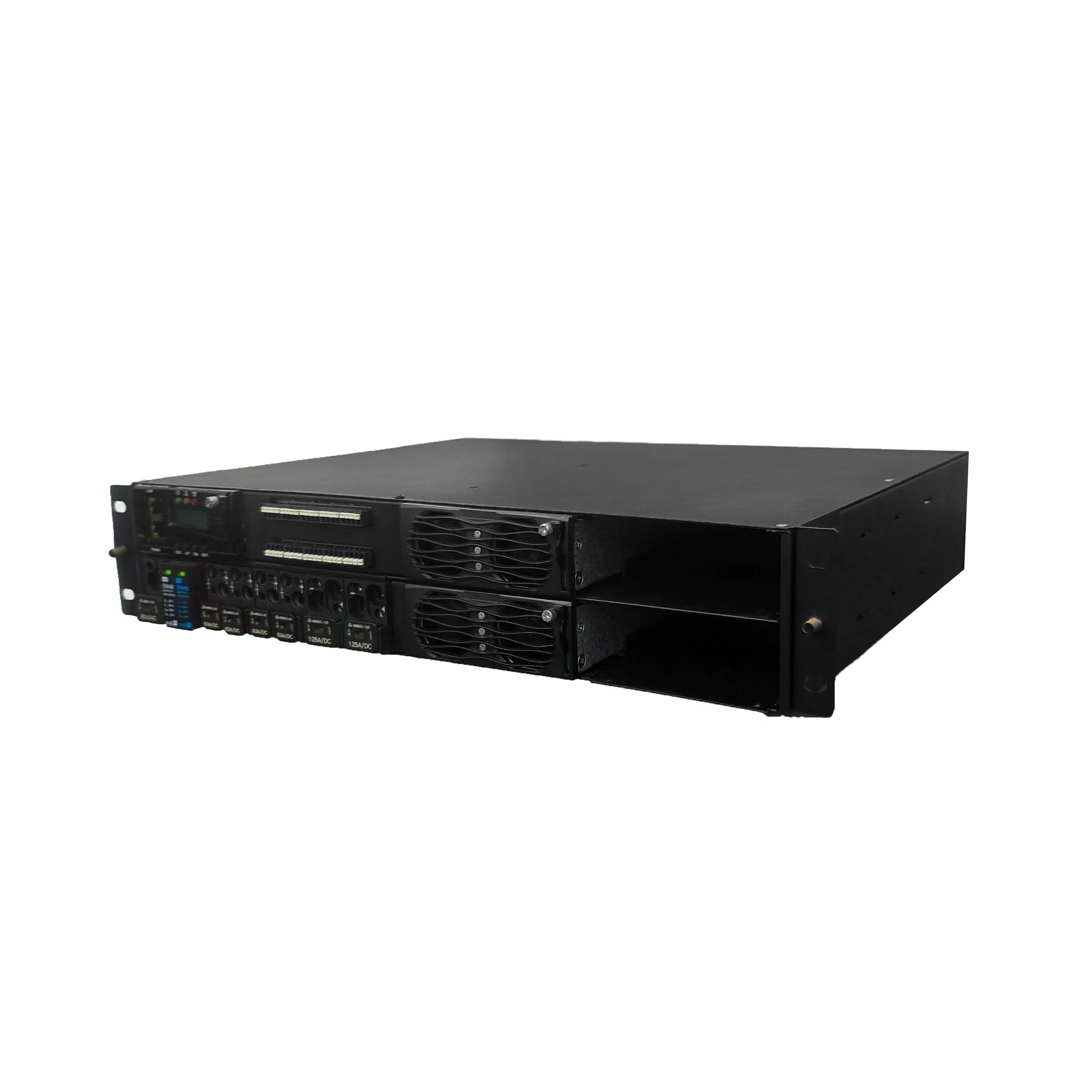

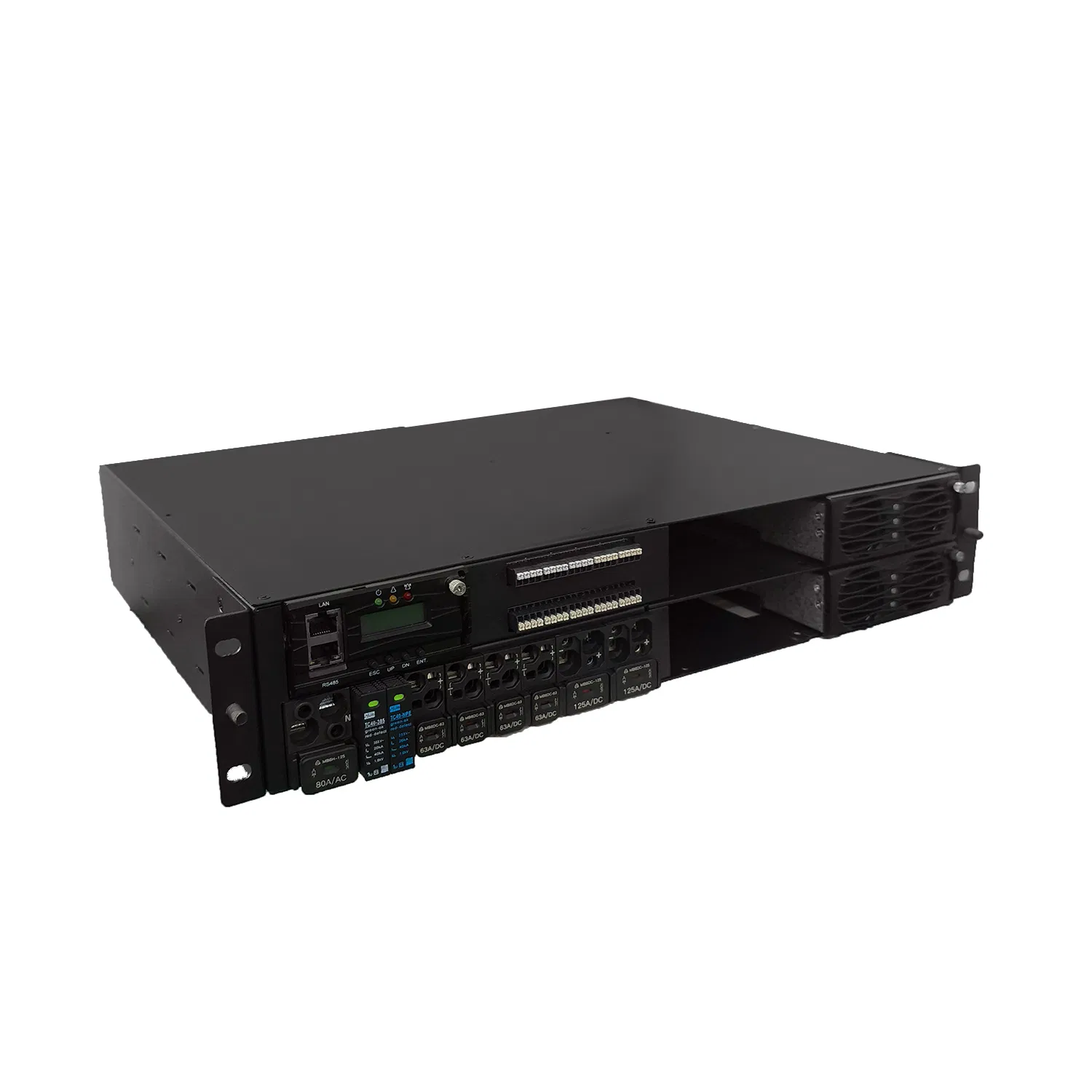

High Efficiency Compack Battery Charger 24VDC 60A Flatpack Rectifier 2u 1.8kw Embedded Rack Telecom Power Supply System

📊 Basic Product Information

Model NO.	BVT220/24-60AS
Product Name	Rectifier System
Output Power	1800W
Input Voltage	220V
Connection Mode	Parallel Switching Power Supply
Modulation System	PWM
Certification	CE, ISO
Protections	Short Circuit, Overtemp, Overload, Overvolt
Application	Laboratory / CCTV Camera / Data Center

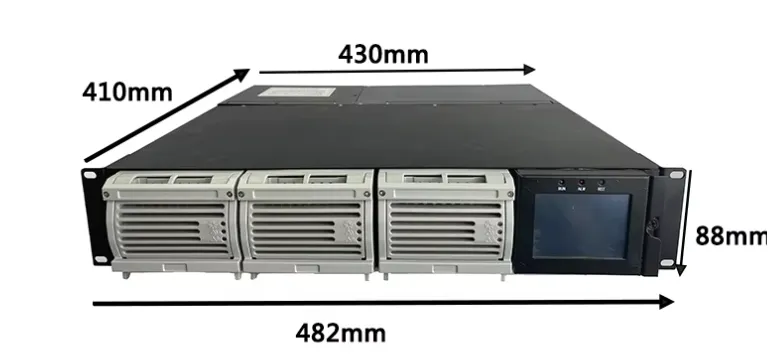

Specification	48241088mm (19 Inch / 2U)
HS Code	8504401990

⚡ Key Features

Widely operating range of AC input voltage: 90~290Vac

Compact 19' inch rackmount shelf (2RU height)

Real-time detection of operating status with sound-light alarm

Perfect battery management with accessory temperature detector

60 amp output per module, scalable up to 960 amp max

High efficiency performance up to 93.2%

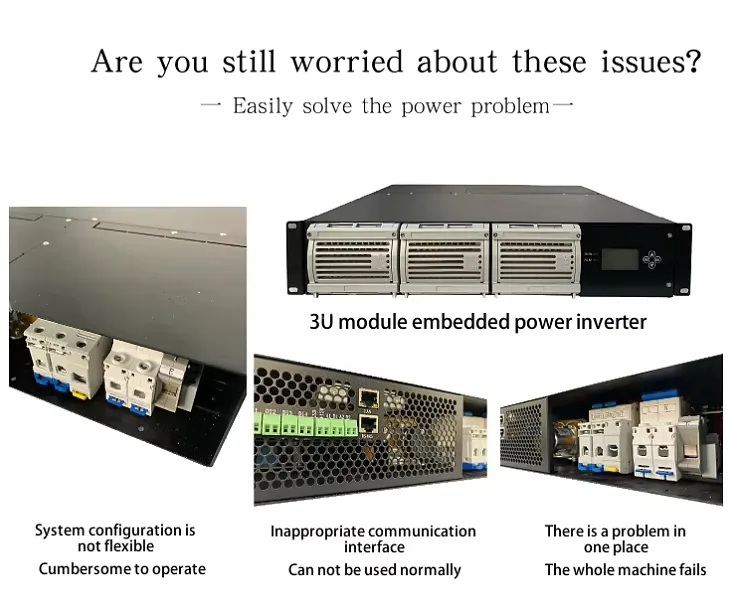

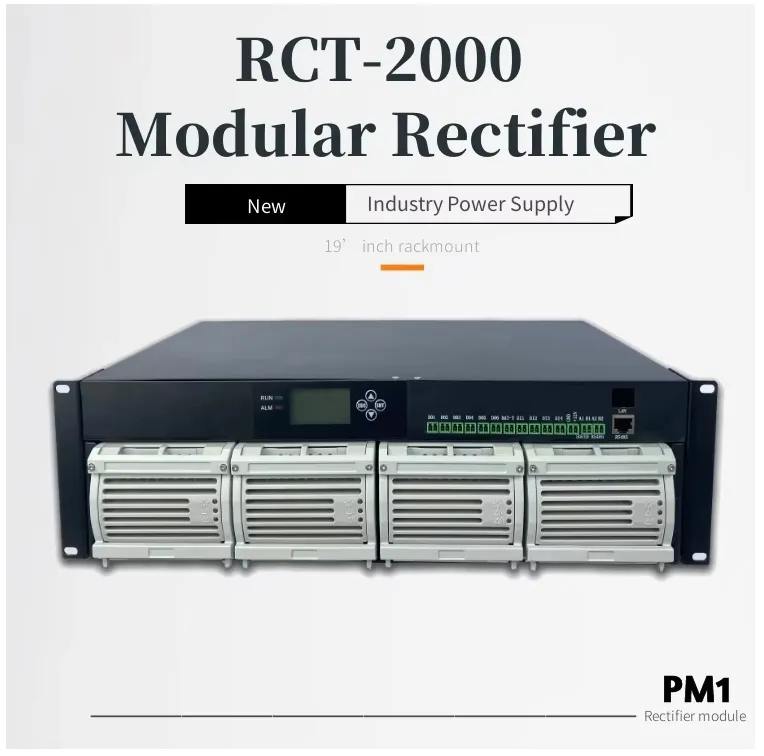

📷 Product Presentation

🛠️ Technical Specifications

AC Input Range	85Vac - 300Vac (220Vac Nom.)
DC Output Voltage	21-29VDC (26.7Vdc Nom.)
Output Current Max	66A (Adjustable 1-120A based on modules)
Efficiency	93.2%
Voltage Regulation	≤±1%
Ripple Voltage	≤200mV (0-20MHz)
Operating Temp.	-40 to +55°C (-40 to +131°F)
MTBF	> 100,000 hours (at 25°C)
Local Interface	LCD Display, Menu Key Pads, LED Indicators
Remote Monitor	TCP/IP, RS485, SNMP (Optional)

🏢 Manufacturing & Quality

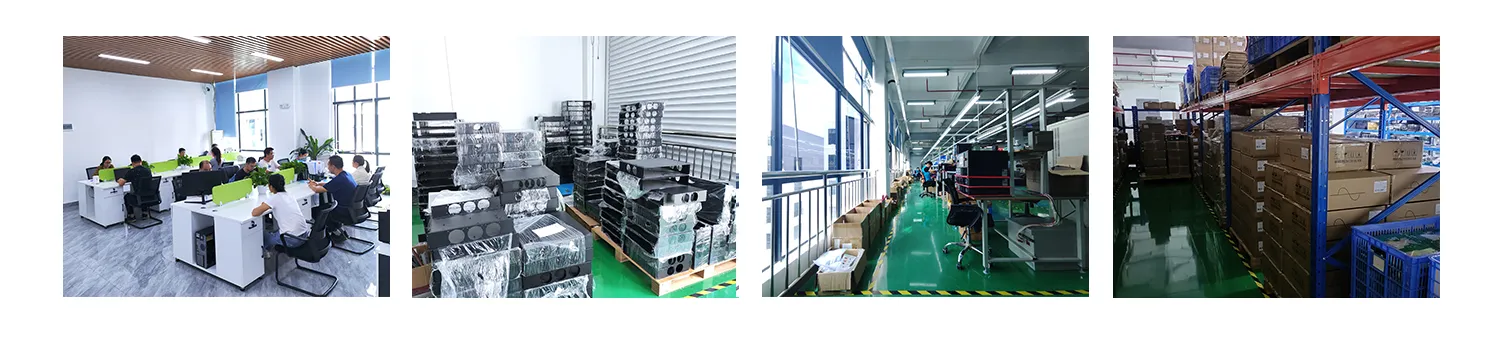

The manufacturer specializes in production of rack inverters, STS, and switching power supplies. Products are exported globally and widely used in telecommunications, energy storage, and data centers. With advanced technology and professional R&D teams, a complete quality control system is maintained from material control and SMT to final aging tests and packaging.

❓ Frequently Asked Questions

Do you have a charging solution?

Yes, the system is suitable for battery charging usage. It is widely used for N+1 power supply and battery charging system management.

Does the product support the SNMP function?

Yes, 90% of our products support SNMP. All products include built-in RS485 communication as standard.

Can the system adapt to high temperatures and operate stably?

The system supports a maximum temperature range of -20℃ to 60℃. Stable operation is maintained, though product life can be increased with air conditioning in high-heat environments.

How is the noise level of the high-frequency inverter power supply?

The noise level is kept at ≤55dB.

What protection functions are included in the power supply?

Protection features include input under-voltage, anti-DC input reverse connection, over-voltage, overload, short-circuit, over-temperature protection, and temperature-controlled fans.

Can I choose the mains mode for the power supply?

Yes, the system supports both AC main power supply and DC main power supply modes. These can be selected flexibly via the LCD panel or communication software.
