Lab Plant Root Phenotype Analysis System

Customization: Available
After-sales Service: Support
Warranty: One Full Year

Product Description

📋 Basic Information
Model NO.
GXY-A
Type
Rice Ear Shape Meter
Application
Plant Analysis
Voltage
220V
Condition
New
Specification
ISO Certified
🔬 Product Description

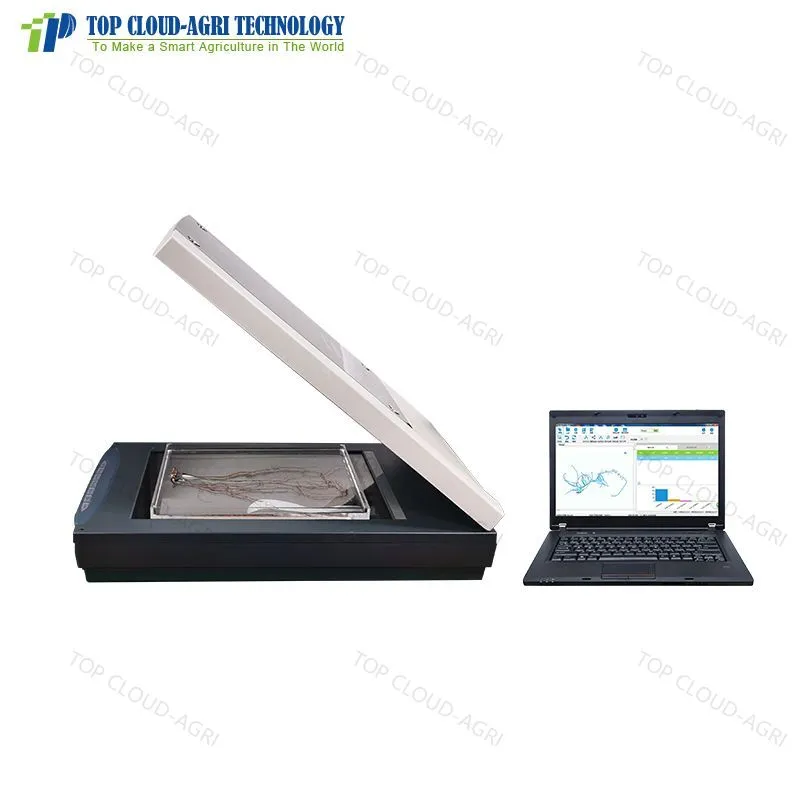

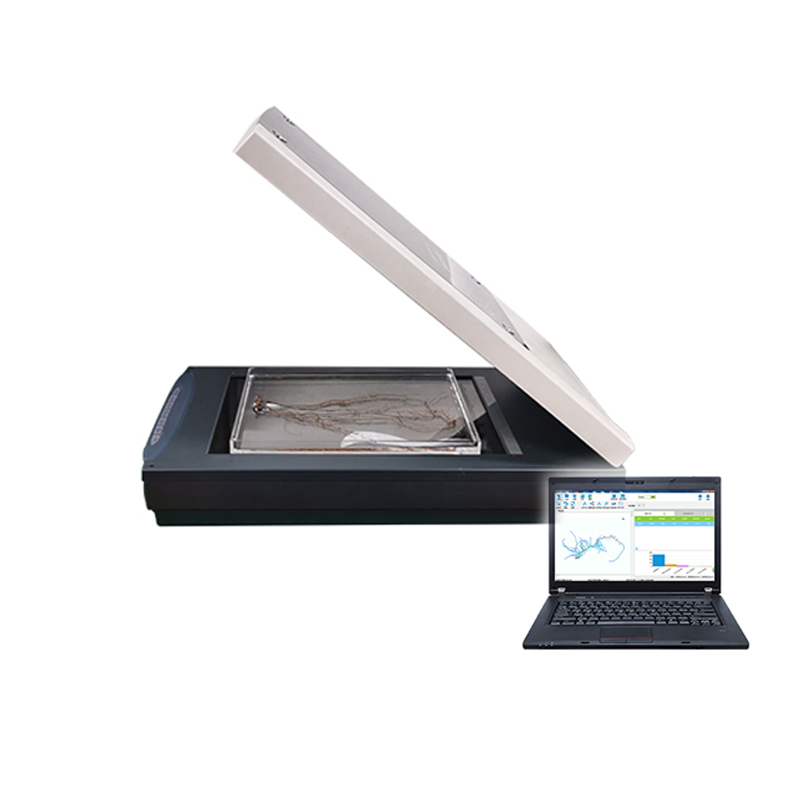

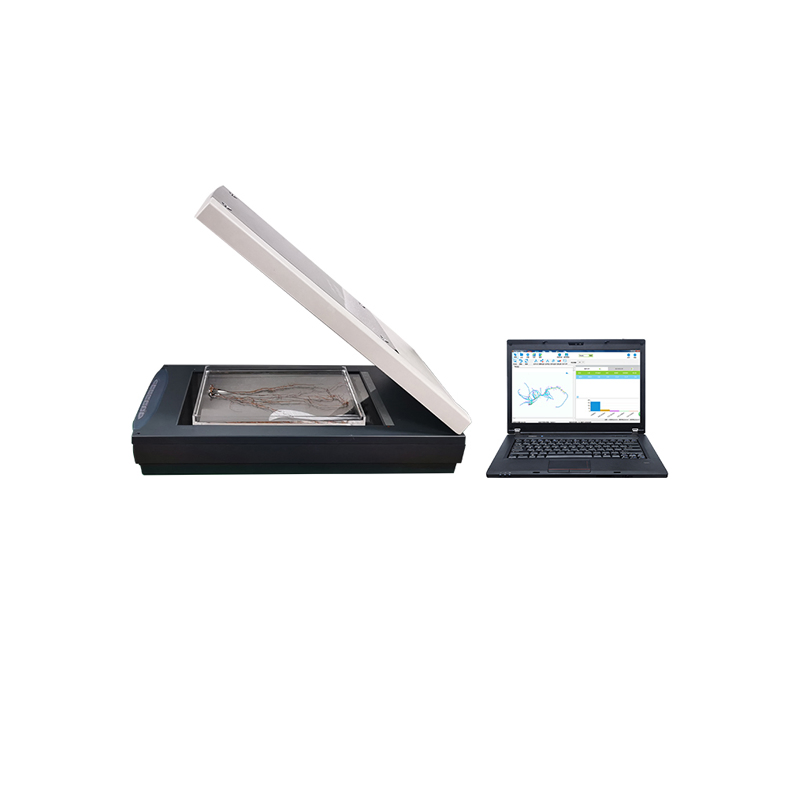

Plant Root Analysis System
1. The plant root phenotype analysis system is based on advanced image recognition technology. It is professionally designed for root analysis of plants after washing the roots in vitro. It can accurately analyze root length, diameter, surface area, volume, root tip number, and branch number. It is widely applicable to root morphology and structure research, using high-precision non-statistical methods to measure parameters even in overlapping sections.
2. This system effectively solves the challenges of obtaining root structure and geometric parameters. Featuring high efficiency and accuracy, it significantly improves research productivity, reduces labor costs, and provides rapid multi-parameter analysis for plant science research.
Key Features
Clear interface design with modular function layout
Lower learning cost for users, providing smoother operation
Highly accurate and reliable analysis results
📊 Technical Specifications
Parameter Category Detailed Measurement Range & Accuracy
Overall Parameters Root Tips: 0-1,000 (Error < 5%)
Total Length: 0-10,000 mm (Error < 3.65%)
Average Diameter: 0-20 mm (Error < 0.04%)
Projected Area: 0-200,000 mm² (Error < 4.02%)
Surface Area: 0-1,000,000 mm² (Error < 3.75%)
Volume: 0-2,000,000,000 mm³ (Error < 3.82%)
Topological Analysis Root Summation: 0-1,000
Connection Count: 0-100
Lateral Root Length: 0-10,000 mm
Average Side Diameter: 0-20 mm
Side Surface Area: 0-1,000,000 mm²
📦 Packing & Delivery
Packing Process
Delivery Logistics
🛠️ After-Sales Service
Service Team
Professional Support: We have a professional after-sales team with global service coverage and a 24-hour response system to provide you with timely solutions.
🏢 Enterprise Profile

Founded in 2008, the company is a national high-tech enterprise specializing in the design, development, and manufacture of agricultural testing instruments and smart agriculture solutions. Core products include measurements for seed shape, breeding, sampling, storage, and plant physiology.

With multiple national invention patents and software copyrights, the enterprise has been identified as a Provincial Academician Workstation and Research Institute.

Office View

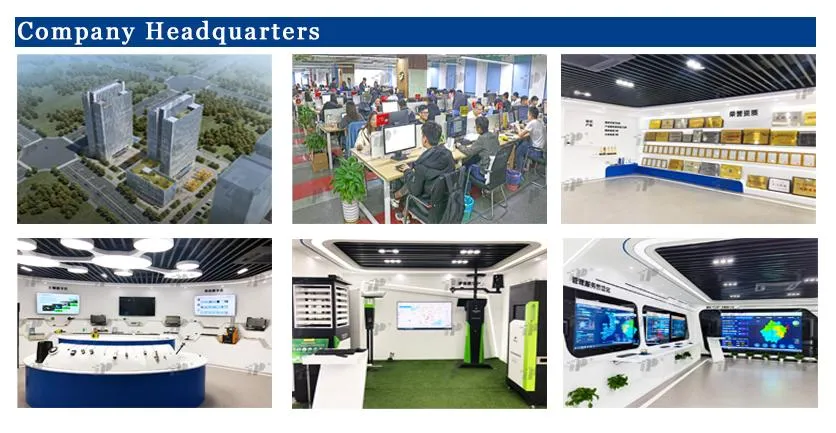

Workshop

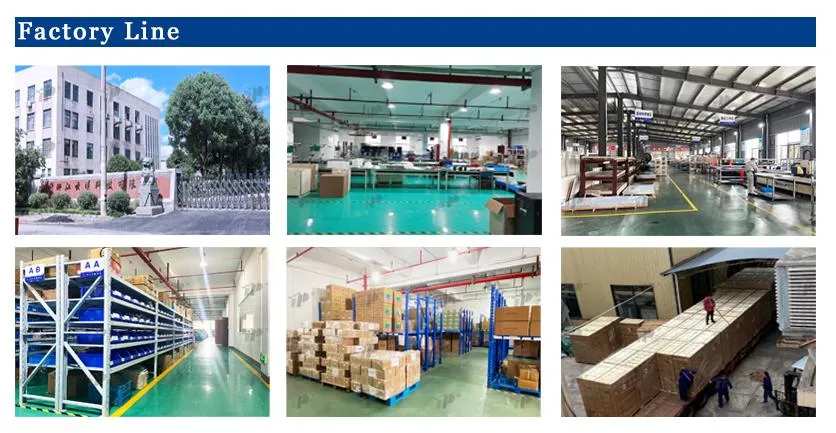

Production

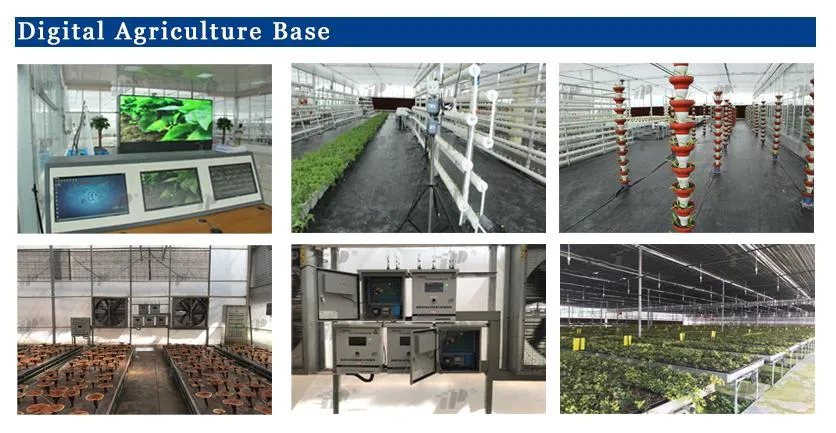

Quality Control
Certificates & Recognition
ISO Certificates
💬 Customer Feedback
Customer Response
Frequently Asked Questions
Are you a manufacturer?
Yes, we are. We operate a massive production base of over 26,680 square meters with more than 300 workers, conveniently located near major shipping ports.
How do you guarantee product quality?
We are ISO9001 / 14001 / 45001 certified. Our professional quality inspection team consists of over 30 inspectors monitoring every process from raw materials to final packaging.
What is the standard warranty and after-sales service?
We provide a full 1-year warranty and offer lifelong maintenance support to ensure the long-term operation of your equipment.
What is the typical delivery lead time?
Generally, delivery takes 3-5 days. However, this may vary slightly depending on the specific product type and order quantity.
Do you offer OEM services?
Yes, OEM is fully acceptable. Please contact our team with your specific requirements for detailed information.
Is technical support available globally?
Absolutely. Our professional service team provides 24-hour support across all time zones to resolve any technical queries.
