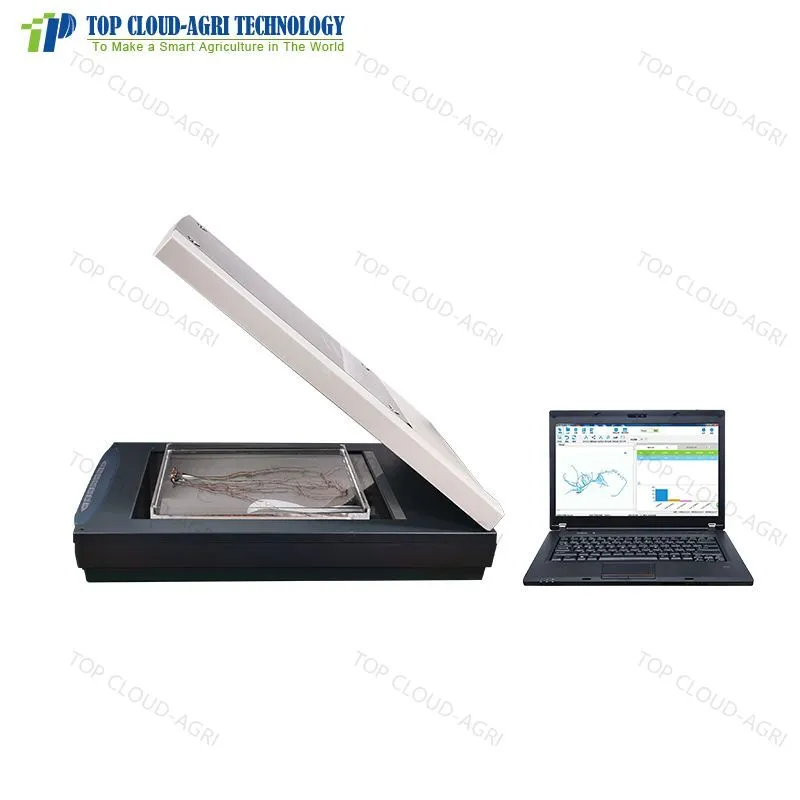

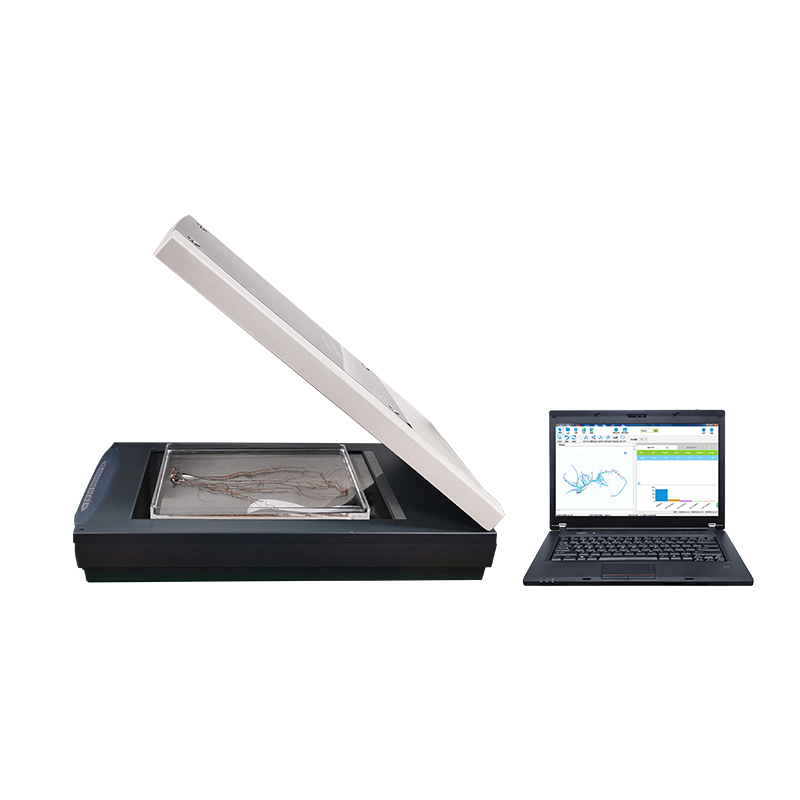

1. The Plant Root Phenotype Analysis System is based on advanced image recognition technology. It is professionally designed for root analysis of plants after washing the roots in vitro. It provides comprehensive analysis of root length, diameter, surface area, volume, root tip number, and branch number.
2. It is widely applicable to root morphology and structure research, utilizing non-statistical methods to measure and calculate parameters accurately, even for overlapping root systems. This system effectively solves the difficulty of obtaining geometric parameters of root structures, significantly improving efficiency and reducing labor costs in plant science research.
| Parameter Category | Detailed Measurement Range & Accuracy |
|---|---|
| Overall Parameters |
• Root tips: 0-1,000 (Error < 5%) • Root system length: 0-10,000 mm (Error < 3.65%) • Average diameter: 0-20 mm (Error < 0.04%) • Projected area: 0-200,000 mm2 (Error < 4.02%) • Surface area: 0-1,000,000 mm2 (Error < 3.75%) • Volume: 0-2,000,000,000 mm3 (Error < 3.82%) |
| Topological Analysis |
• Total quantity: 0-1,000 roots • Connection count: 0-100 connections • Lateral root length: 0-10,000 mm • Lateral root diameter: 0-20 mm • Lateral surface area: 0-1,000,000 mm2 • Lateral volume: 0-2,000,000,000 mm3 |
We provide a professional after-sales team with global service coverage. Our support is available to provide you with technical solutions and maintenance guidance.

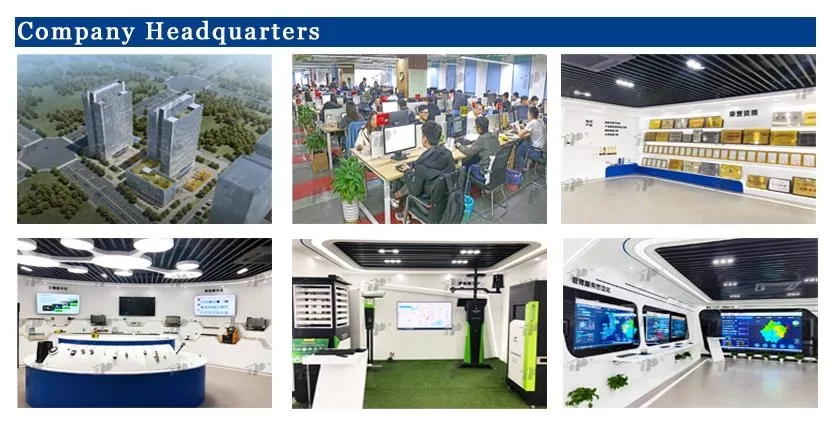

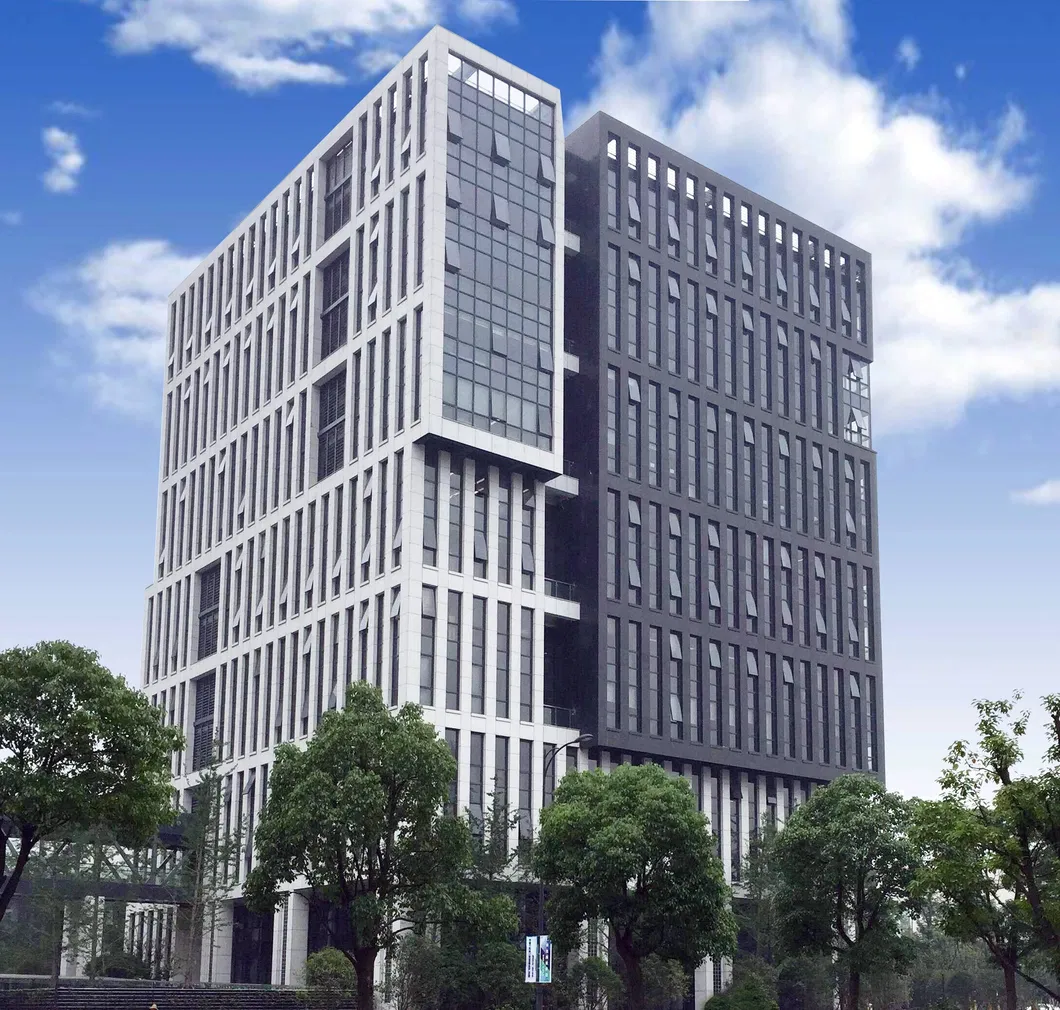

Our facility is a national high-tech enterprise specializing in the design, development, and manufacture of agricultural testing instruments and laboratory equipment. We hold numerous national invention patents and utility model patents, ensuring our products remain at the forefront of agricultural technology.
