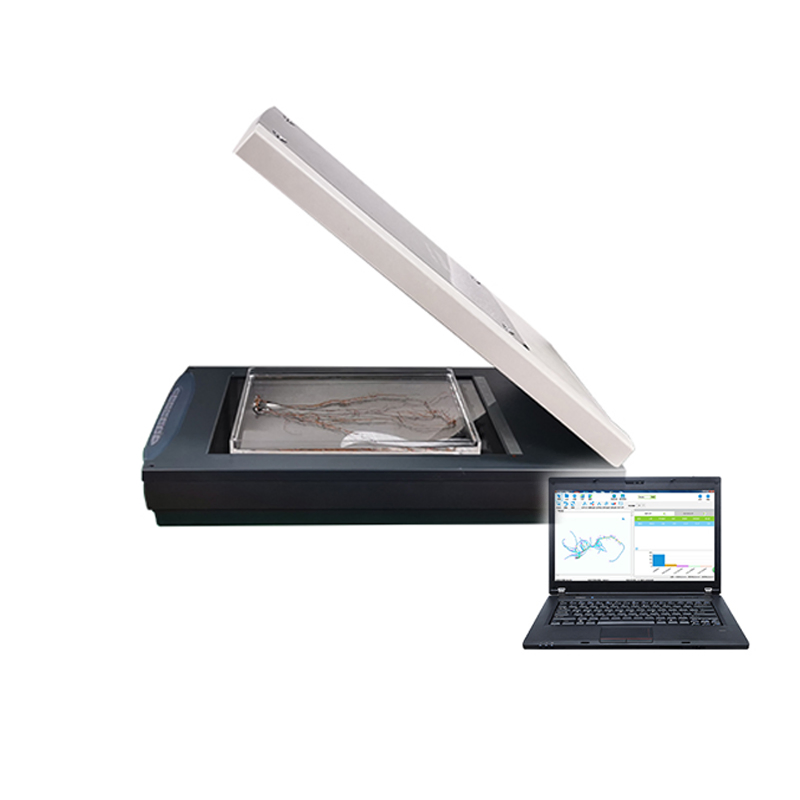

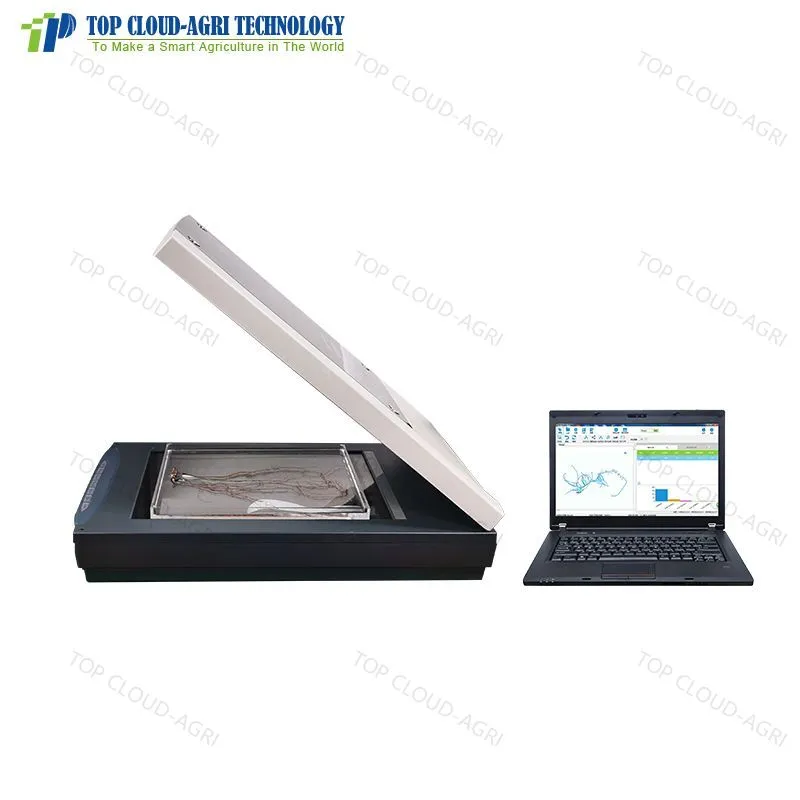

1. The plant root phenotype analysis system is based on advanced image recognition technology. It is professionally designed for root analysis of plants after washing the roots in vitro. It can accurately analyze root length, diameter, surface area, volume, root tip number, and branch number. It is widely applicable to root morphology and structure research, utilizing non-statistical methods to measure parameters such as the length of the root system in overlapping parts with high precision.
2. This system effectively solves the difficulty of obtaining root structure and geometric parameters. With its convenience, efficiency, and high accuracy, it improves work efficiency, reduces labor costs, and provides rapid multi-parameter root phenotype analysis for plant science research.
| Category | Parameter Details & Accuracy |
|---|---|
| Overall Parameters |
• Root tips: 0-1,000 (Error <5%) • Root system length: 0-10,000 mm (Error <3.65%) • Average diameter: 0-20 mm (Error <0.04%) • Projected area: 0-200,000 mm² (Error <4.02%) • Surface area: 0-1,000,000 mm² (Error <3.75%) • Volume: 0-2,000,000,000 mm³ (Error <3.82%) |
| Topological Analysis |
• Quantity: Sum of roots at all levels (0-1,000) • Connections: Total side root connections (0-100) • Length: Lateral roots sum (0-10,000 mm) • Surface Area: Total of side roots (0-1,000,000 mm²) • Volume: Total side root volume (0-2,000,000,000 mm³) |

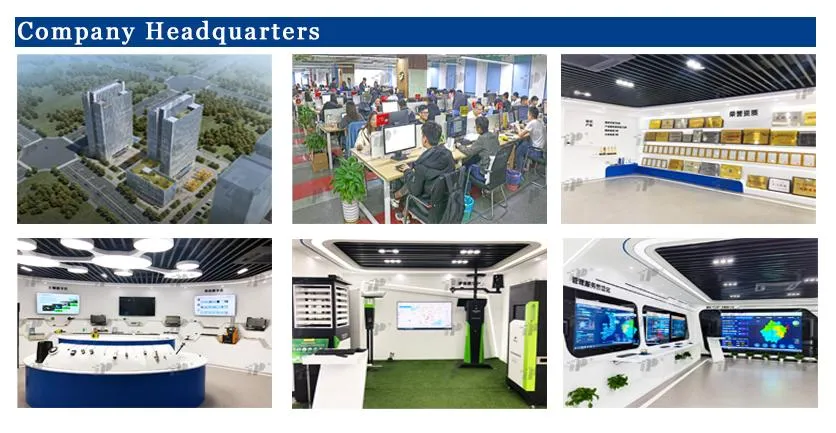

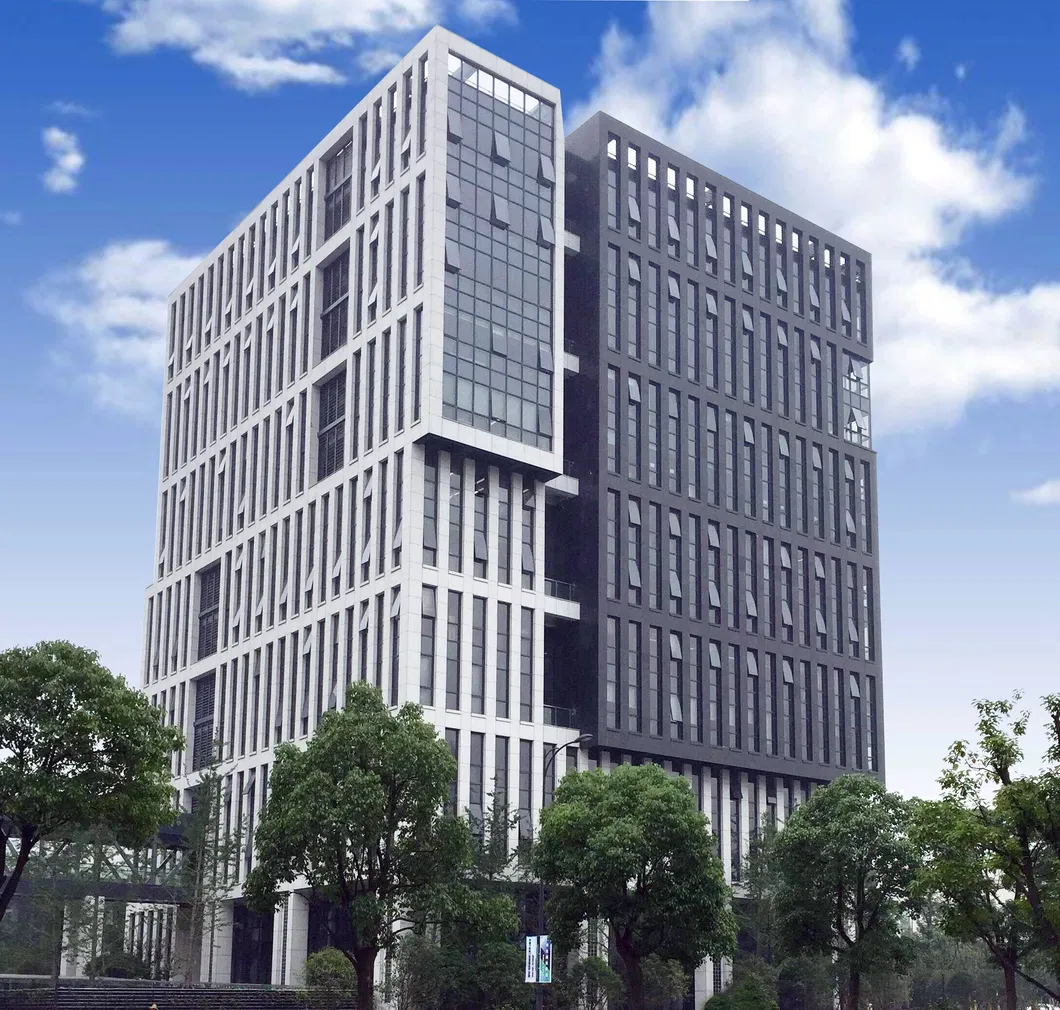

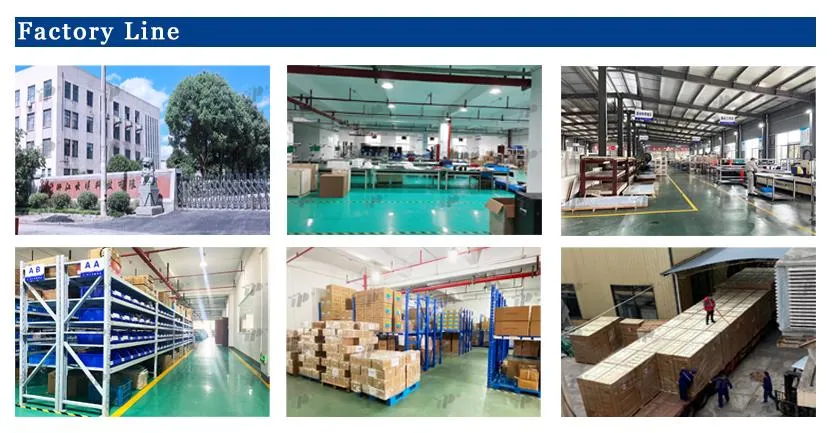

Founded in 2008, we are a national high-tech enterprise specializing in the design, development, manufacture, and sales of agricultural testing instruments, laboratory equipment, and smart agriculture solutions.
Our core products include testing instruments for seed shape measurement, breeding, sampling, storage, and seed vigor. We also provide solutions for plant physiology, soil analysis, crop quality, food safety detection, and weather monitoring.
